h.265 Surveillance Outdoor Camera WiFi 5MP 2.4G HD IP Cam SD Card Storage Wireless Weatherproof Security Cam H.265 IP Camera


Choose an option
Choose an option
Choose an option
Choose an option
SKU: 33034165937 Category:
  • Type: IP Camera
  • Style: Bullet Camera
  • High Definition: 5.0 Megapixels
  • Connectivity: WIFI
  • Lens (mm): 3.6mm
  • Lens (mm): 2.8mm
  • Supported Operating Systems: Windows 10
  • Supported Operating Systems: Windows 2008
  • Supported Operating Systems: Windows 2000
  • Supported Operating Systems: Windows Vista
  • Supported Operating Systems: windows 8
  • Supported Operating Systems: Windows 7
  • Supported Operating Systems: Windows 98
  • Supported Operating Systems: Mac OS
  • Supported Operating Systems: windows xp
  • Supported Operating Systems: Windows 2003
  • Model Number: MG03AR-200-3X
  • Sensor: CMOS
  • Technology: INFRARED
  • Special Features: Waterproof / Weatherproof
  • Sensor Brand: SONY
  • Supported Mobile Systems: ios
  • Supported Mobile Systems: Android
  • Alarm Action: FTP Photo
  • Alarm Action: Email Photo
  • Alarm Action: Local Alarm
  • Power Supply(V): DC 12V 2A
  • Network Interface: RJ-45 10/100Mb Ethernet Slot

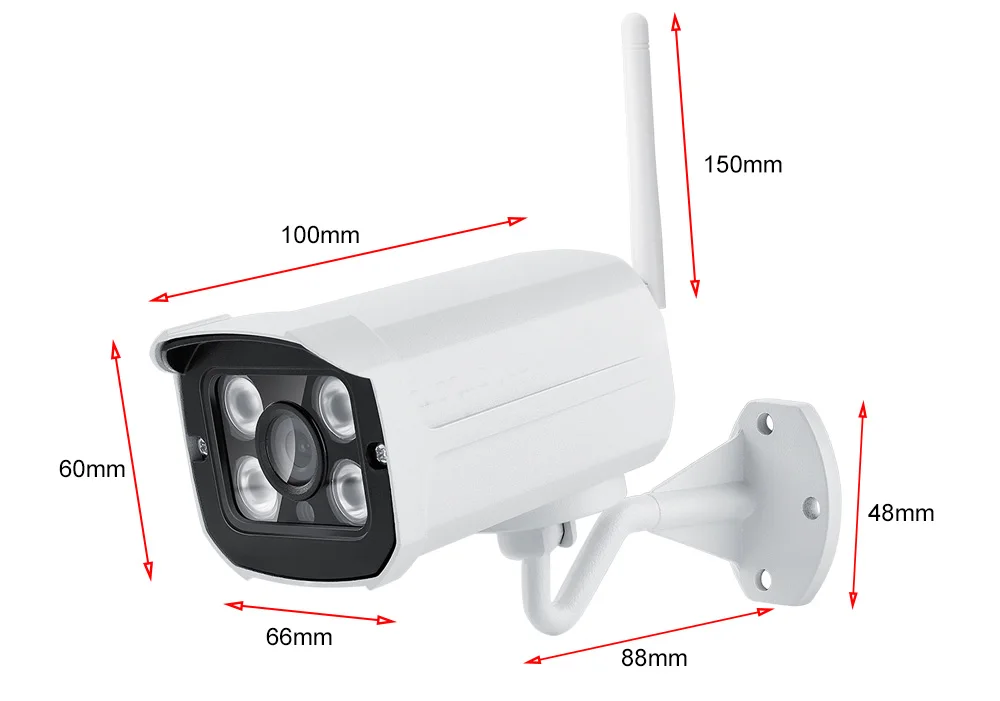

  • Dimensions (L x W x D)(mm): 2
  • IR Distance(m): 50
  • Video Compression Format: H.264
  • Video Compression Format: H.265
  • Minimum Illumination(Lux): 0
  • Wall Bracket: Ceiling
  • Color: White
  • Installation: Ceiling
  • Storage: 128G
  • Power Supply: Normal
  • TF Card: None
  • Megapixels: 2MP
  • Brand Name: OUWDRES


h.265 Surveillance Outdoor Camera WiFi 5MP 2.4G HD IP Cam SD Card Storage Wireless Weatherproof Security Cam H.265+ IP Camera






5MP Super HD Videos Offer You Super Clear Images

Most 720p and 1080p IP cameras in the market capture non-distinct images. But this 504I5M camera is with 5MP (2560×1944) high resolution. It presents real colors of objects, and enables you to view sharp and super clear images with live video streaming – you’ll never miss any details.


Dual Band WiFi Makes Stronger Network Signals

USAFEQLO wireless cameras are the first dual-band WiFi security cameras in the world, with 2.4 GHz available, and 1 antennas. You will never worry about network off-line.

This surveillance camera comes with a built-in Micro SD card (Item is not include the TF card). Max support 128GB

·   Record and save motion detection triggered events.
·   Store up to 400 motion events.
·   MLC industrial grade SD card – video data transfer is much faster.






Lool to what’s happening around

This WiFi camera can pick up video anytime and make sure you can see it in the everywhere of the word.





Outdoor Waterproof Design
One of the best outdoor security cameras ever with IP66 waterproof. The weather resistant body and housing made of aluminum alloy enable it to work perfectly even in bad weather, like in heavy rains or snows.




High Quality Night Vision

This Usafeqlo USA-504I5M camera has a very good night image quality. With 4PCs Array LED lights and infrared radiation for 24-hour vigilance, the camera night vision range is up to 100 feet in the dark, good reassurance in terms of preventing security threat.


Instant Motion Detection Alerts

Automatically detect moving objects and trigger alerts when dangers occur. Protect your home and business effectively from burglars, intruders and break-ins. When invasion happens without your permission, this camera will send alerts in real time.


Remote Viewing, Anytime, from Anywhere

No matter where you are, you can remotely access the camera to see live streaming and stay connected.Remotely view the camera via: free icsee App on your mobile device, free CMS Client on your computer, web browsers (IE).ICSEE-_10ICSEE-_11


➢          5.0M HD resolution,clear and fine images;

➢          Support multiple intelligent analysis;

➢          Support 2D/3D noise reduction,digital wide dynamic;

➢          Advanced H.265/H.264 video compression,Super low rate,high definition quality of image;

➢          Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.

➢          Support ONVIF ,access third party;

➢          Support various mobile monitoring(iPhone,Android);

➢          Provide web,CMS,center platform management software MYEYE,provide SDK development

➢          Support cloud technology,easy to achieve network penetration,fro in-line and alarm  information pushed




System structure

Embedded RTOS,dual-core 32bit DSP(Hi3516D),pure hard compression ,watch dog


5.0M 1/2.5" PS5510 CMOS sensor ,color 0.1LuxaF1.2,black/white 0.01F 1.2

Video compression

H.265/H.264,support dual stream,AVI;0.1M~10Mpbs variable;1~30f/s variable

Image output

Main stream: 5MP 2592*1944@15fps;4MP 2560*1440@25fps;3MP 2048*1536@25fps; sub-stream: 704*576@25fps;


1/50(1/60)s to 1/10,000s



Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic


Auto iris


Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone;

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Extension interface

1*USB,support WIFI/3G,support SD;1ch Alarm output;reset key;1ch Alarm input or LED panel;RTC battery

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR



Motor interface


Alarm I/O

1/0(support alarm input and video link to background)

WIFI interface


Reset interface


SD Card



Comprehensive lightning protection, 7 * 24 hours 65  ℃ high temperature stable and reliable testing

Intelligence analysis



Other function

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center

reminder and image linkage,support JPEG capture;united remote client monitoring sofaware、MYEYE;perfect SDK;



Mobile monitoring

Support multiple mobile monitoring(iOS,Android)


DC12V/2A input, power consumption:≤3W,




The TF card slot is inside the body, need open the infront case and install the TF Card.

H.265/H.265+ must work with our H.265/H.265+.

It have WIFI and AP, It will update contact method without any Notice,if you can not contact the camera, please ask our worker at the first time. We will reply you at the first time.

If you contact it and failed,please take off the power and power again,then wait 1 minutes and press the reset button and keep 15 seconds, then please check your wifi list, to see weather have an wifi name from the camera, it will named "IPC" or "Cam+numbers", if have the wifi name, you can use the AP mode to contact it.

if have no wifi name, please use the smart contact.








How about the delivery and how to do if the item not arrive on time ?

1: Most of the parcel will arrive in 20-60 days, the Brazil will need 30-90 days arrive. Other remote country even need more days.

If you order the item, please make sure that in 60 days do not make any dispute to say item still on the road. You can contact us online and we will reply you where is the item and what is the problem with the shipping. Brazil need wait 90 days.

For example, Germany buyer brought one item on 01/01/2018, and we send out the itme on 05/01/2018, our delivery time will be 60 days until 05/03/2018, in these days you can ask us help you extand delivery for the order. We will not accept anyone open dispute in 60 days.

About the delivery time, the airmail shipping sometime slow and sometime fast, this will have many reasons, like the custom Improve security specifications, Item made of metal, or the item include li-battery inside. So please understanding about the delivery time.

2: Russian buyer need offer us your city, province, contact number, passport number, receiver name clear. Some of the russian address have the same city by not the same province, sometimes will got the problem with the address.

3: If you need the item arrive fast, or if you need it hurry, please choose the Express to send the item, like the SPSR,DHL,FEDEX,TNT,EMS.



How to Receive the package ?

1: This is the electronic product, so sometimes easy damage by shipping, or somewhere no working.

So when you saw the itme package box is Severe extrusion or deformation, please help make a video of open thepackage.

This will help us save more time to confirm the problem and make refund. If damage item by shipping, the shipper will bear some loss.

2: If your post agree with you open the package before sign the item, you can check the item weather complete first, if it have any problems, you can choose Rejected the parcel. And please contact us at the first time to let we know the parcel is damage.





How to do if you get some problem and can not be slove by yourself ?

1: When you have the problem how to use the item, please leave message into the order, our worker will reply you in 24 hours.

We will on work from Monday to Saturday Chinese BeiJing Time 10:30 to 17:30. In this time you can ask us the technical questions. We will have engineer online to help you slove the problem. If we can not reply in 24 hours, please send more message again.

Other times we will just reply the message, if on Sunday, please leave us your question into the order or wait on Monday to contact us online.If you think your question is not easy to slove, please find a free time to keep online to ask us to help you.

2: All the items will take a 1 year warranty, in this year if you find anywhere no working, please contact us online, we will help you slove the problem as soon as possible.

In this way we will offer you some questions, please kindly to reply us, this will help us fast confirm the problem.


What problem can open the dispute ?

1: When after we talk about the problem, we will tell you how to do with the item.

Sometimes if real have problem we will make some refund, or full refund. This all need you contact us to talk about the problem first, do not worry, any problems we will help you slove it first, if we can not help you slove the problem for a long time, you can open dispute to ask refund.

2: Some of the item is expensive, and you have choose the air mail shipping to send out the item, so please know the item will on the road for a long time, no one can promise the item can  be intact, some times the parcel have somewhere deformation, please understanding about this.

If you can not accept any deormation, please choose the Express shipping way, like the FedEx,DHL,TNT,EMS,ARAMEX to send out the item. We will take a strong package for you.

3: When you get the problem of the item features, Please don't open dispute first, feature problems most because of the country reason or the technology reason. So contact us to help you slove the problem will be best !

We are the chinese USAFEQLO factory, we have engineer to   Production and research and development CCTV security items, if you have any problem, please trust us first instead of your loacl person.
