Complete Set of 1080P 30X Optical Zoom 400m Night Version IP Laser Vehicle CCTV Security PTZ Camera

$7,071.00

Choose an option
Choose an option
3.6mm
Clear
SKU: 32968119718 Category:
  • Supported Mobile Systems: Windows Mobile
  • Supported Mobile Systems: Android
  • Supported Operating Systems: Windows 10
  • Supported Operating Systems: Windows Vista
  • Supported Operating Systems: windows 8
  • Supported Operating Systems: Windows 7
  • Supported Operating Systems: Windows 98
  • Supported Operating Systems: Mac OS
  • Supported Operating Systems: windows xp
  • Technology: Pan / Tilt / Zoom
  • Lens (mm): 3.6mm
  • High Definition: 1080P(Full-HD)
  • is_customized: Yes
  • Network Interface: None
  • Power Supply(V): 12V
  • Brand Name: sowze
  • Alarm Action: Local Alarm
  • Installation: Ceiling
  • Special Features: Waterproof / Weatherproof
  • Color: Black
  • Dimensions (L x W x D)(mm): 124*120*210mm
  • Sensor: CMOS
  • Type: IP Camera
  • IR Distance(m): Over 400 meters
  • Audio Output: None
  • Minimum Illumination(Lux): 0.001LUX
  • Sensor Brand: SONY
  • Viewing Angle : 360°
  • TF Card: None
  • Storage: None
  • Video Compression Format: H.264
  • Model Number: SW-MIP9230T-LL
  • Wall Bracket: Ceiling
  • Style: HD IP Laser PTZ Camera
  • Power Supply: DC
  • Connectivity: HD IP Laser PTZ Camera
  • Lens (mm): 4.3-129mm
  • Product name : IP Mini IR Vehicle PTZ Camera
  • Power input: DC11V-DC18V
  • Optical zoom: 30X Optical Zoom
  • Protection rate: IP66
  • Control interface: RS485
  • Warranty: Two Years
  • Resolution: Full HD IP 1080P

High Quality 1080P 30X Optical Zoom 400m Night Version IP Laser Vehicle CCTV Security PTZ Camera



Product Description

Features:

2.0MP(1280x1080P) HD laser PTZ camera

High speed P/T/Z system, 30x optical zoom

360°continuously rotation, upward angle up to 180°

Waterproof IP66; up to 400 meters IR range

Super shockproof, especially suitable for vehicle surveillance

DC10.5V~DC18V Power supply

This complete set of IP PTZ Camera System include:

1* 1080P 30X optical zoom Laser vehicle ptz camera.

1* 4G+GPS module MNVR

1*3D Joystick Keyboard Controller

1*7 inches HD Stand alone Monitor

Specification:

Model NO.

SW-MIP9230T-LL

Image Device

1/2.8" 2.0MP Progressive Scan CMOS.

Effective Pixels

HD IP 2.0Megapixel

Resolution

1280*1080@30FPS

Min illumination

0.1Lux/F1.4(Color) 0.005Lux/F1.4(B/W) 0Lux/F1.4(IR on)

Laser Range

Over 400 meter

White Balance

ON/OFF, auto/indoor/outdoor

AGC

Auto/Manual

S/N Ration

>50dB

Electronic Shutter

P:1/3~1/10,000s N:1/4~1/10,000s

D/N Mode

Day & Night (IR cut)

WDR

ON/OFF optional

Digital zoom

30 x optical ZOOM,12 x electronic amplifier

Privacy Zone

8 zones

Focusing

Auto/Manual

Lens length

4.7-94mm

Preset

128

Cruise Scanning

6 cruises, 16presets for each cruise,128 preset positions

Pattern scanning

4 sets, 180s PTZ memory

Horizontal Preset Speed

160°/S

Vertical Preset Speed

120°/S

Horizontal Manual Controlling Speed

0.4°~80°/S

Vertical Manual Controlling Speed

0.4°~60°/S

Horizontal Rotation

Pan: 0~360º

Vertical Rotation

+90°~-90°

Power Off Memory

Remember the state before power outage, including horizontal and vertical location, and lens zooming, resume when restarting

Auto  Parking

Auto call up of preset/ patrol/ pattern/tilt scan/random scan/frame scan/panorama scan, after a defined time of inactivity

OSD menu

Chinese/English

Alarm (optional)

2 inputs, 1 output; can be preset point linkage, cruise scan, pattern scan, trigger switch output the client electronic map

PTZ Control Protocol

PELCO-P, PELCO-D(can be added)

Power Supply

DC10.5V~DC18V(3.5A, Vehicle);AC24V(2.5A, Normal)

Power Consumption

50W max

Protection levels

IP66 lightning protection, anti-surge

Operation Temperature

-40°C~+65°C

Shock Resistance

≥4G

net weight

8KG



Detailed Images





Packaging & Shipping




1. Dear buyer, we will send out the items within 6 working days after your payment confirmation. China post air free shipping to almost the world,will take about 30-45 days. If there is no option for china post air when you
make the order, please choose other shipping method,and contact me to change the price. EMS, TNT, DHL are also available,you have to pay the extra shipping fee, it will take about 5-15 days.

2. Please note that Buyers are responsible for all additional customs fees, brokerage  fees, duties, and taxes for importation into your country. We will not refund shipping charges for refused shipments

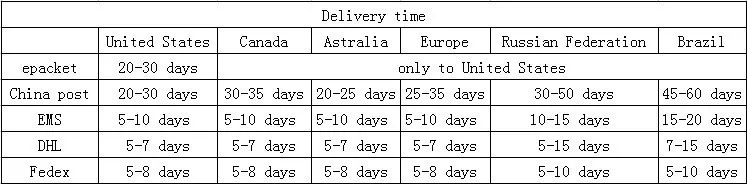

3.Shipping time
HTB1Gp7HIpXXXXa5XXXXq6xXFXXXv
