3G 4G SIM card 2mp ip camera wifi h.265X 1080p PTZ CMOS 2mp wireless IP camera 3.6mm two way audio p2p security ptz dome

$189.00$219.00

Choose an option
Choose an option
32gb
64gb
no card
Choose an option
Choose an option
3.6mm
Clear
SKU: 4001175667279 Category:
  • Brand Name: OUWDRES
  • Type: IP Camera
  • Supported Operating Systems: windows xp
  • Supported Operating Systems: windows 8
  • Supported Operating Systems: Windows 10
  • High Definition: 1080P(Full-HD)
  • Lens (mm): 3.6mm
  • Style: Dome Camera

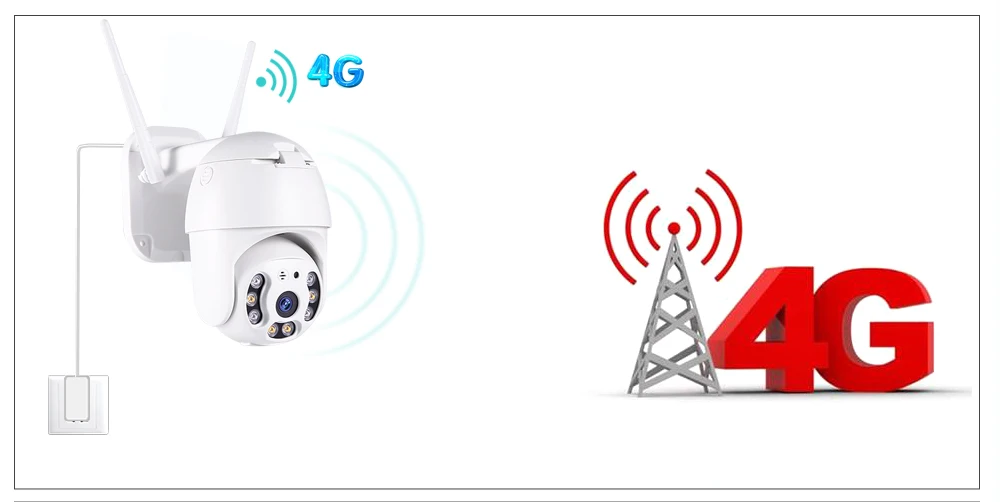

  • Connectivity: 4G
  • Wall Bracket: Side
  • Power Consumption(W): Waterproof / Weatherproof
  • Minimum Illumination(Lux): White 4pcs IR 4pcs
  • Sensor: CMOS
  • Megapixels: 2MP
  • Sensor Brand: SONY
  • TF Card: 64G TF Card
  • IR Distance(m): Yes
  • Power Supply(V): 12V
  • Model Number: USA-SG20N-4G
  • Viewing Angle : 90°
  • Dimensions (L x W x D)(mm): Head/ 16×10 cm
  • Network Interface: 4G
  • Audio Output: 1CH RCA
_01

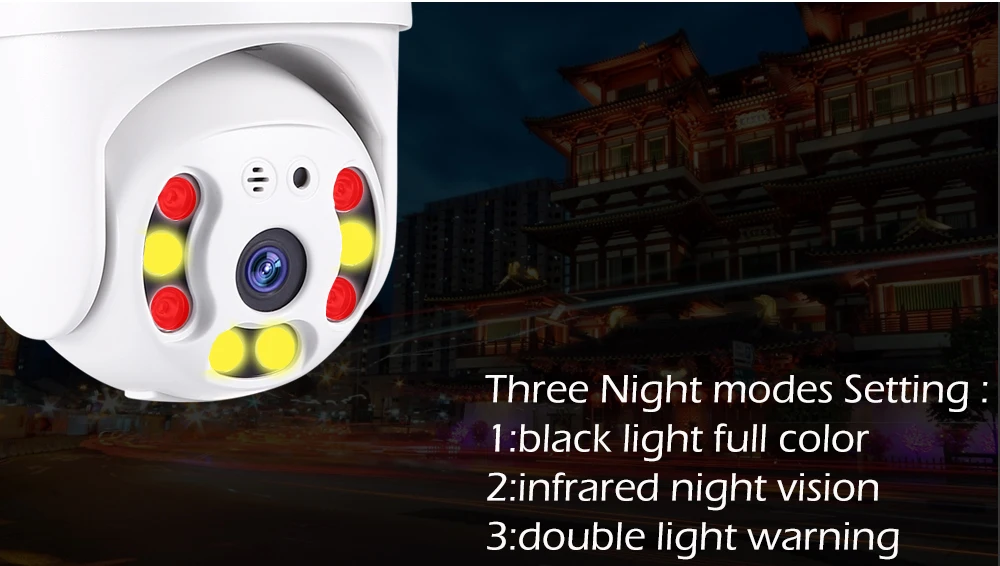

Smart Dual Light Source
Built-in 4Pcs White LED and 4Pcs IR LED, Monitor moving objects, automatically illuminate. This is an impressive little weapon against crime.

_02

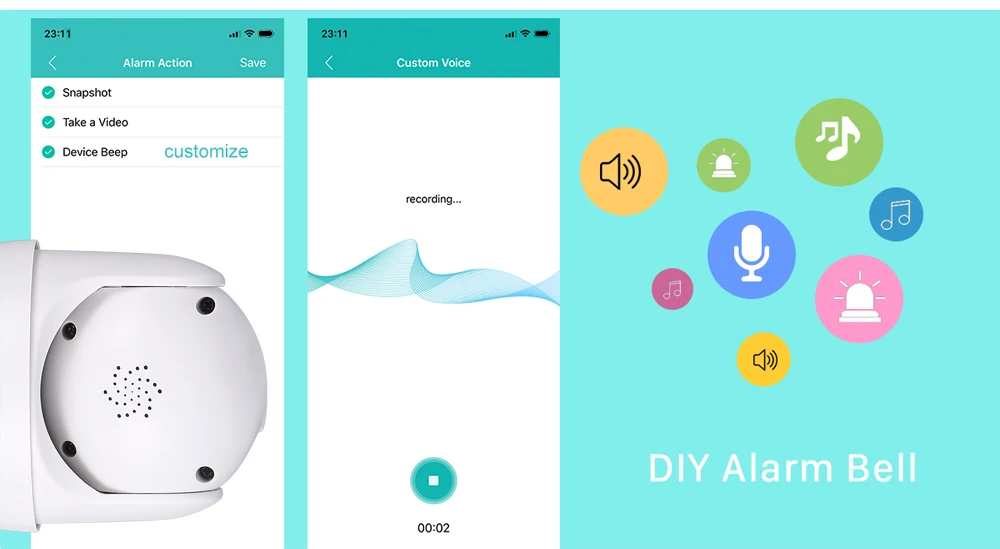

DIY Alarm Voice Settings
You can select default bell or DIY 3 seconds custom alarm bell by your voice_03

_05
          IP66 Waterproof
_01
PTZ Remote Control
Rotates 270° Horizontally and 90° Vertically .You can remote it in the ICSEE app directly whenever you want and wherever you are.

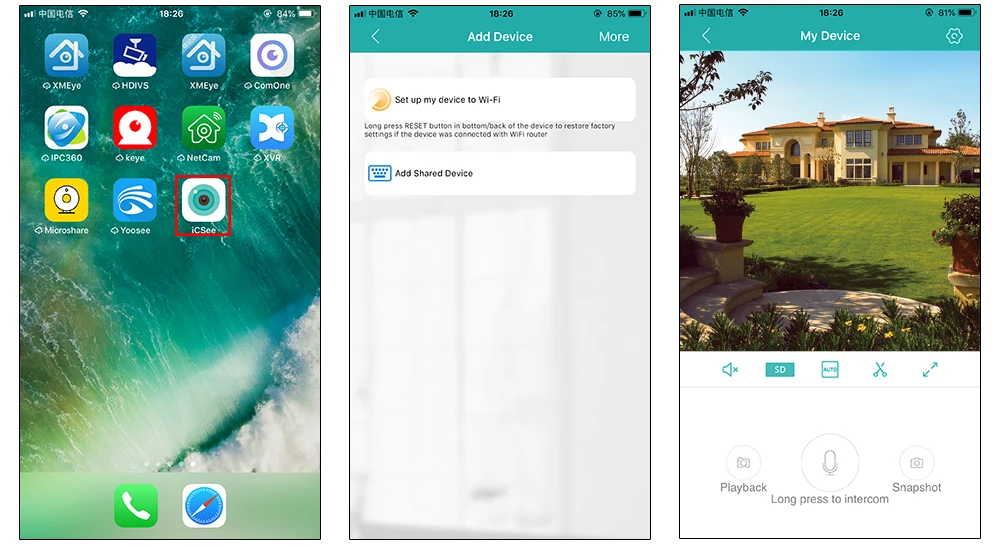

Plug and Play, So easy to installation(APP is iCSEE/XmEye)
With the free and easy to use app, you can view your surveillance video securely from virtually anywhere.

_06_07_08
Support Two-way audio
Place your camera anywhere in your home and monitor activity at your fingertips.The two-way audio and excellent image quality allows you to connect with your family remotely

_09
Smooth Pan and Tilt Monitoring
Smooth 320 degree Pan and 90 degree Tilt allows you carefully observe every corner. Control the movements of the camera.  hold on your phone to see whatever you wan to see.

_12

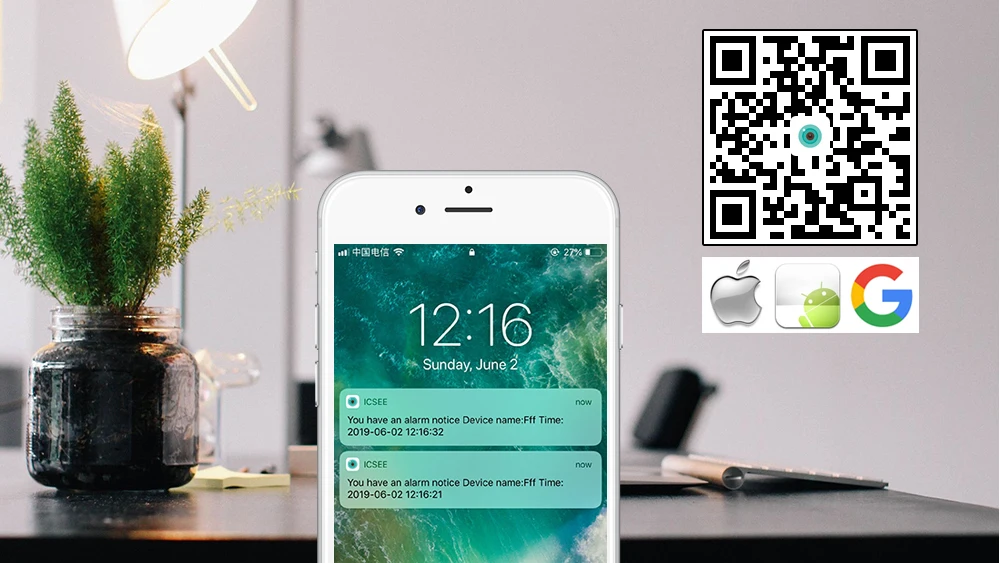

Motion-Activated Email Alarm
In attempt to make you stay alarmed of all unexpected movements in your house. Motion detection works perfectly with email alert function making sure you are always the first one to get informed when things happen.

_14

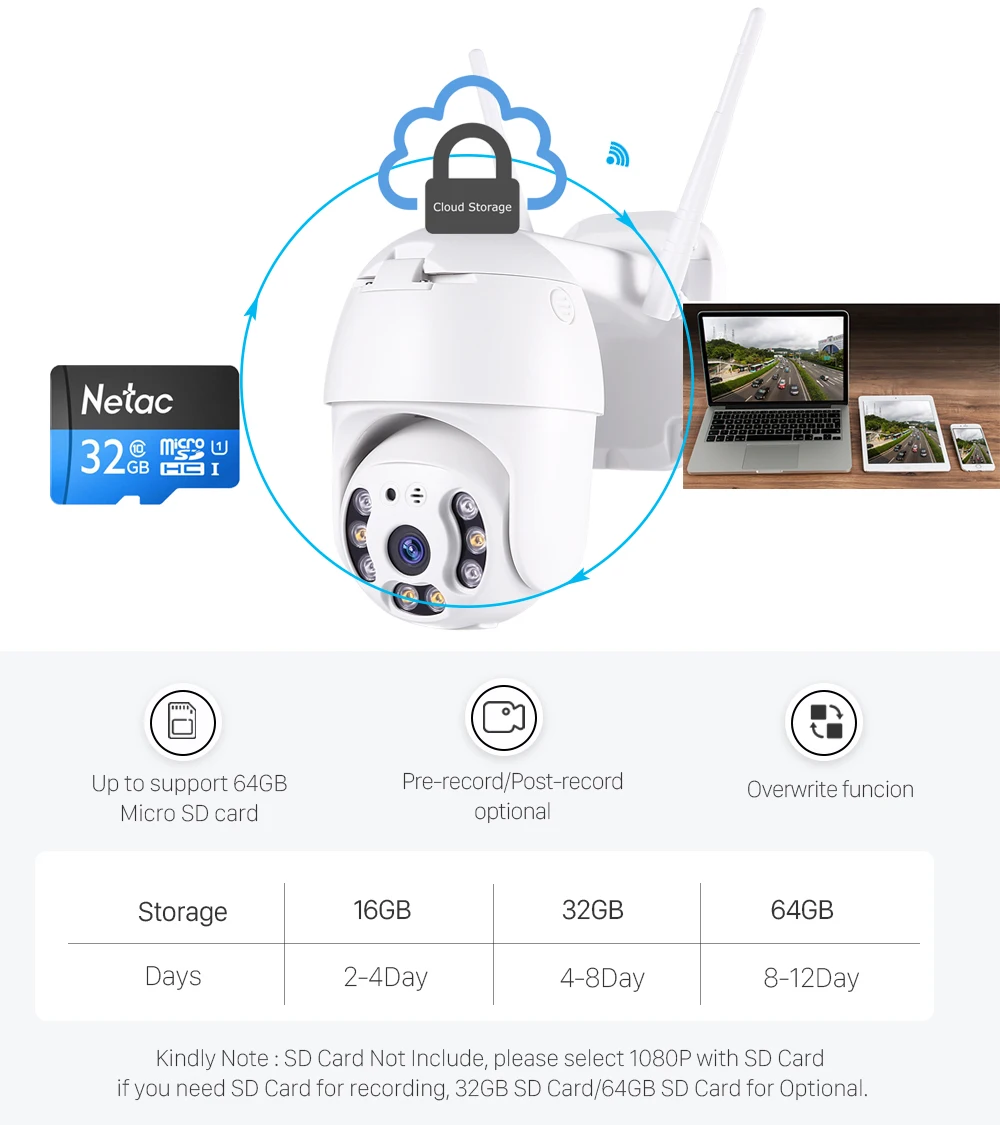

Support cloud storage
You can watch your monitoring video on every device that can log into the cloud storage,support TF card Max 64GB

_15
VMS & www.xmeye.net Display
_16
_17
Multiple mobile and PC device access

_19_21

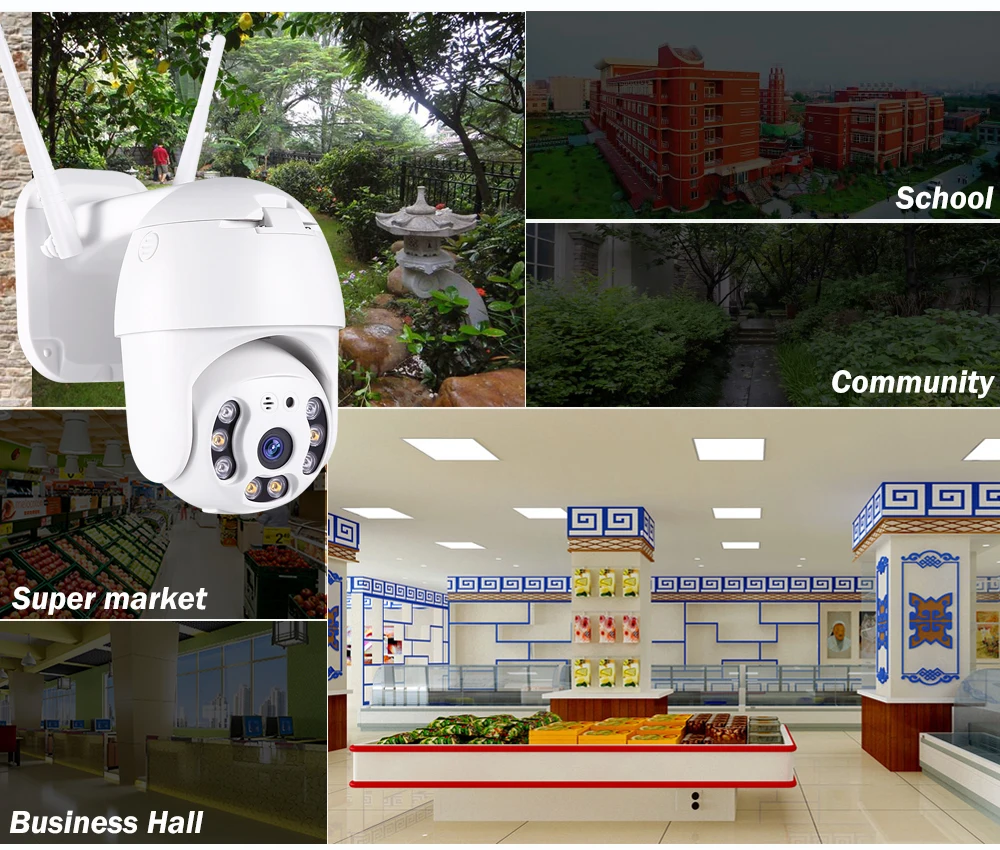

Suitable for many places

_23

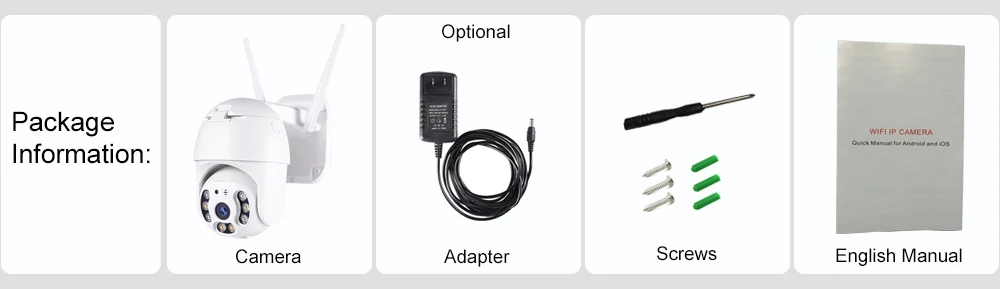

Package information
1x 4G Camera
3x Screws
1x User manual
1x Screw tool
1x TF card (Optional in the link SKU)
1x 12V2A with 3M cable(Optional in the link SKU)
_25

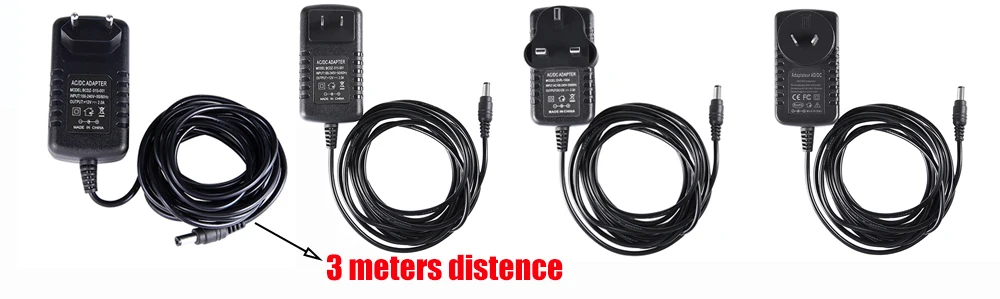

We have produce the special Power adapter for this camera, The power have the orgional 3M cable, not use any extender cable
_25

Features:
– HD 1080P Resolution
2.0MP High Definition image,Clear and fine images.Max Image size 1920*1080.
– Audio Record
Can record the sound around the camera,Most Other Camera Not Support Audio Record.Clear listening effect, Save voice evidence, True sound reproduction, Clear detail recording, Help you record important sound evidence.
– Motion Detection Alarm
The camera detects the moving person.Send a mobile phone alarm message.
– PTZ Control
Can rotate 270 degrees horizontally and rotate 90 degrees vertically.The mobile phone can control the rotation angle of the gimbal and see the direction you want to see.
– Two-Way Speech
Filter noise, clearer sound, real-time two-way speech,Easy to deal with various problems.Drive away the bad guys.
– Mobile Video Surveillance
Support mobile phone iOS, Android system,Remote monitoring of mobile phones,You can view and monitor at any time.
– IP66 Waterproof
IP66 waterproof.Professional waterproof design,Outdoor waterproof, Good sealing,No need to worry about rain.
– JPEG Snapshot
Snapshot function.Snapshot function.Upload pictures from your phone.
– Infrared Night Vision VIew
The Farthest IR/wihte Distance is up to 30M.
– Day&Night
IR cut filter with auto switch.
– TF Card
TF card slot,Maximum support 128g. Defult is not include TF card.
Must be 8GB,16GB,32GB,64GB.
Most of the 128GB can not work, if you need, you can buy 128GB card from us.
We only make sure Our card and Kingsten, Sandisk orgional card 8-64gb can work well.
Card must be Class10 or more better.

Your TF card can work on PC not means can support this camera, we will not accept any dispute because of the card.
– Compression
Advanced H.264/5X video compression,Super low rate,high definition quality of image.
– Center Platform Aanagement Software iCSEE and XmEye

RJ45 port can not work

The product will be continuously updated and there may be minor changes in the future, we will not notice.

Model
USA-SG20N-4G

Camera
Operating system
Embedded Linux OS
Processor Sensor
XM530+2235
Megapixel
1920*1080
Lens interface type
M12
Lens
3.6mm Fixed Lens

View angle
90 degrees
Min.illumination
0.01 Lux  / 0 Lux(IR on)
Day&Night mode
Auto IR-CUT
Night vision distance
4pcs Array Infrared LEDs or 4pcs White Supplement LEDs. 30M Night Vision
Video
Video compression
standard
H.265X/H.264 Main Profile/H.264 Baseline
Video streaming
Dual streaming
Video resolution
First stream: 1080P(1920×1080), 720P(1280×720)
Second stream: 720P(640×480/640×352),
720P(320×240/320×176)
JPEG stream :(Monitoring for mobile phones),
720P(640×352), 720P(320×176)
Video code rate
Supports constant bitrate/variable bitrate
Video frame rate
20fps(PAL 50HZ). 20fps(NTSC 60HZ)
Image settings
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement
Backlight compensation,Automatic white balance,
Digital WDR, 3D digital noise reduction
Audio
Audio compression standard
G.726/G.711
Audio code rate
Rate adaptive
Audio Input
Support, Built-in Microphone
Audio Output
Support Two Way Audio Talk ,  Built-in Loud Speaker
Function
Motion detecting
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the specified mailbox,
alarm upload pictures and videos to the FTP server,
alarm write pictures and videos to Micro SD card,
alarm message push
Privacy mask
Maximum support 4 users to simultaneously browse
OSD
Support camera name, date and time information superimposed
User management
Supports user and rights management
Simultaneous viewers
maximum support 12 users to simultaneously browse
(each stream supports 4 users)
Network protocol
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP
DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
iF the camera support contact by xmeye app, these functions defult will support.
We will not accept any dispute because of this function not working.
Connection protocol
N/A
4G
4G standard
FDD-LTE
Frequency range
Africa,Europe,Asia Standrad: B1,B3,B7,B8,B20,B38,B40,B41, WCDMA B1,WCDMA B8.
America, South America, North America Standrad: B1,B2,B4,B12,B13,WCDMA B2,WCDMA B4,WCDMA B5.
Japan Standrad: B1,B3,B8,B18,B19,B26, TDD B41,WCDMA B1,WCDMA B6,WCDMA B19.
Ukraine Standrad: B3,B7.
Transmission rate
Upload max:50Mbps, download max: 150Mbps
Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
PTZ
Rotation angle
Horizon:0° to 270°. Vertical: 0° to 90°
Horizontal speed
1° to 40°/S
Vertical speed
1° to 20°/S
Preset
N/A
Interface
Power interface
1*5.5mm power interface
Ethernet
N/A
TF card Slot
1*TF card slot. up to 64G(Don't included TF Card)
Reset button
Support
General
Specification
Power supply
DC 12V 2A (optional)
power
Day: 3W;  Night: 12W
Operating temperature
-20 to +60 degree
Operating humidity
10% to 95%
Material
ABS Plastic Housing ,Outdoor Use,Waterproof IP66
Installation
Rack mounting
Size(W×D×H)(mm)
160*110*100mm
Weight(kg)
0.8kg
Package Size(W×D×H)(mm)
250*250*100mm
Package Weight(kg)
0.85kg

SKU Mean:
"1080P NO Power" means Only the camera without TF card and power adapter
"1080P 12V2A Power" means the camera with the 12V2A 3M power adapter, no TF card.
"1080P 16GB 2A Power" means the camera with 12V2A 3M power adapter and 1 pcs 16GB TF card.
"1080P 32GB 2A Power" means the camera with 12V2A 3M power adapter and 1 pcs 32GB TF card.
"1080P 64GB 2A Power" means the camera with 12V2A 3M power adapter and 1 pcs 64GB TF card.

Attaction:
Warehouse Russian:
The order from Russian, we will send from Warehouse if have stock.
Warehouse Spain:
The order from Spain, we will send from spain warehouse except 35xxx,38xxx,51xxx,52xxx zip code.

Item details
_02

5555
How about the delivery and how to do if the item not arrive on time ?

1: Most of the parcel will arrive in 20-60 days, the Brazil will need 30-90 days arrive. Other remote country even need more days.
If you order the item, please make sure that in 60 days do not make any dispute to say item still on the road. You can contact us online and we will reply you where is the item and what is the problem with the shipping. Brazil need wait 90 days.
For example, Germany buyer brought one item on 01/01/2018, and we send out the itme on 05/01/2018, our delivery time will be 60 days until 05/03/2018, in these days you can ask us help you extand delivery for the order. We will not accept anyone open dispute in 60 days.
About the delivery time, the airmail shipping sometime slow and sometime fast, this will have many reasons, like the custom Improve security specifications, Item made of metal, or the item include li-battery inside. So please understanding about the delivery time.

2: Russian buyer need offer us your city, province, contact number, passport number, receiver name clear. Some of the russian address have the same city by not the same province, sometimes will got the problem with the address.
3: If you need the item arrive fast, or if you need it hurry, please choose the Express to send the item, like the SPSR,DHL,FEDEX,TNT,EMS.
4444
How to Receive the package ?
1: This is the electronic product, so sometimes easy damage by shipping, or somewhere no working.
So when you saw the itme package box is Severe extrusion or deformation, please help make a video of open thepackage.
This will help us save more time to confirm the problem and make refund. If damage item by shipping, the shipper will bear some loss.

2: If your post agree with you open the package before sign the item, you can check the item weather complete first, if it have any problems, you can choose Rejected the parcel. And please contact us at the first time to let we know the parcel is damage.
2222
How to do if you get some problem and can not be slove by yourself ?
1: When you have the problem how to use the item, please leave message into the order, our worker will reply you in 24 hours.
We will on work from Monday to Saturday Chinese BeiJing Time 10:30 to 17:30. In this time you can ask us the technical questions. We will have engineer online to help you slove the problem. If we can not reply in 24 hours, please send more message again.
Other times we will just reply the message, if on Sunday, please leave us your question into the order or wait on Monday to contact us online.If you think your question is not easy to slove, please find a free time to keep online to ask us to help you.

2: All the items will take a 1 year warranty, in this year if you find anywhere no working, please contact us online, we will help you slove the problem as soon as possible.
In this way we will offer you some questions, please kindly to reply us, this will help us fast confirm the problem.
3333
What problem can open the dispute ?
1: When after we talk about the problem, we will tell you how to do with the item.
Sometimes if real have problem we will make some refund, or full refund. This all need you contact us to talk about the problem first, do not worry, any problems we will help you slove it first, if we can not help you slove the problem for a long time, you can open dispute to ask refund.

2: Some of the item is expensive, and you have choose the air mail shipping to send out the item, so please know the item will on the road for a long time, no one can promise the item can be intact, some times the parcel have somewhere deformation, please understanding about this.
If you can not accept any deormation, please choose the Express shipping way, like the FedEx,DHL,TNT,EMS,ARAMEX to send out the item. We will take a strong package for you.

3: When you get the problem of the item features, Please don't open dispute first, feature problems most because of the country reason or the technology reason. So contact us to help you slove the problem will be best !
We are the chinese USAFEQLO factory, we have engineer to Production and research and development CCTV security items, if you have any problem, please trust us first instead of your loacl person.
