- Brand Name: OUWDRES
- Type: IP Camera
- Supported Operating Systems: Windows 7
- Supported Operating Systems: Mac OS
- Supported Operating Systems: windows 8
- Supported Operating Systems: Windows 2008
- Supported Operating Systems: Windows 2003
- High Definition: 1080P(Full-HD)
- Lens (mm): 3.6mm
- Style: Dome Camera
- Connectivity: 4G
- Wall Bracket: Side
- Power Consumption(W): Waterproof / Weatherproof
- Minimum Illumination(Lux): 0.01
- Sensor: CMOS
- Megapixels: 2MP
- Sensor Brand: SONY
- TF Card: None
- IR Distance(m): Yes
- Power Supply(V): 12V
- Model Number: OS-4GSJZ
- Viewing Angle : 75°
- Technology: INFRARED
- Dimensions (L x W x D)(mm): Head/ 16.7x11cm
- Network Interface: RJ-45 10/100Mb Ethernet Slot
- Audio Output: 1CH RCA

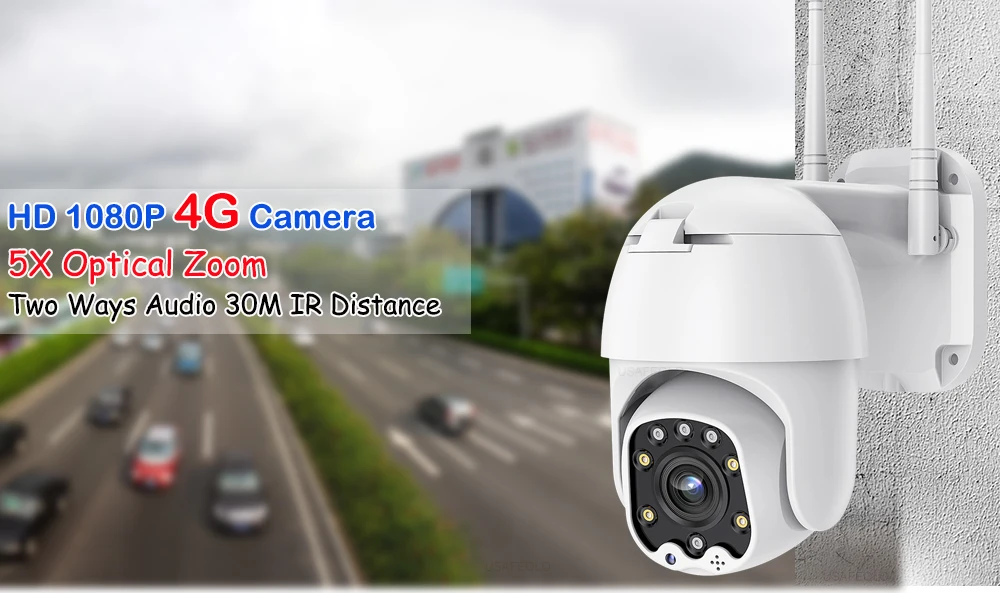

2.7-13.5mm 5X Optical Zoom
2.5CH ABS CASE
Plug and Play, So easy to installation(APP is iCSEE/XmEye)
With the free and easy to use app, you can view your surveillance video securely from virtually anywhere.
Real-time two way audio communication
Camera has built in microphone and speaker.
Never miss a moment with your family.
Motion Detection & Email Alert
The smart motion detection helps you keep close eye on every movement happened in your home and office.And yoursquoll get instant alarming email with images captured when the home or office is invaded.

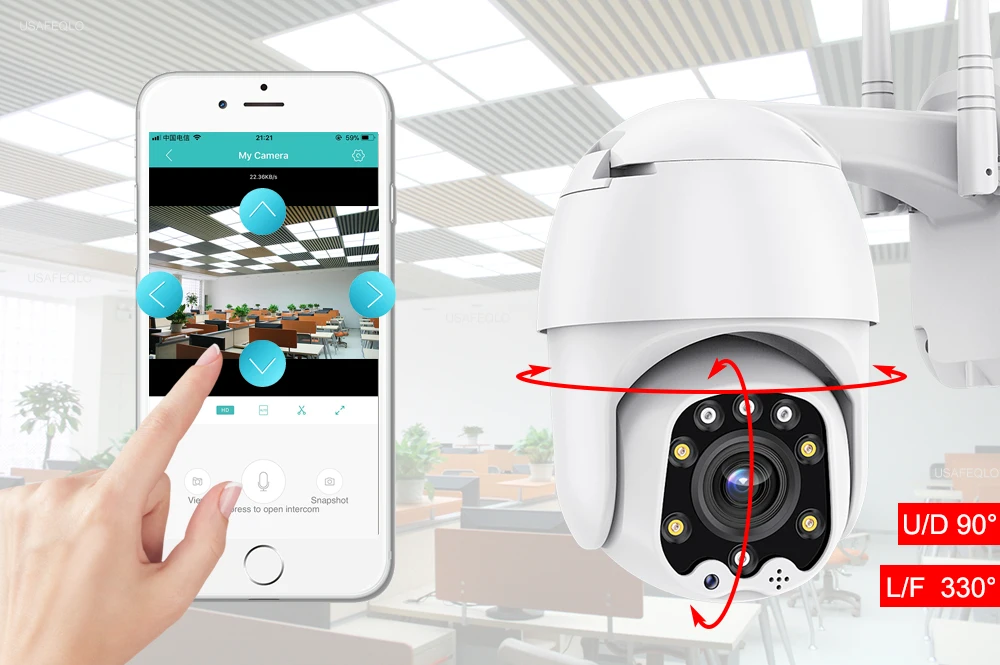

Smooth pan and tilt monitoring
Smooth 330 degree pan allows you to enjoy a sweeping view of the entire room.Control the movements of the camera. head on your phone to see whatever you wan to see.
Smart Dual Light Modes
Built-in 4Pcs White LED and 4Pcs IR LED .
Monitor moving objects, automatically illuminate.This is an impressive little weapon against crime .
Camera could show colorful vision at night too , there are three night modes for you to select .

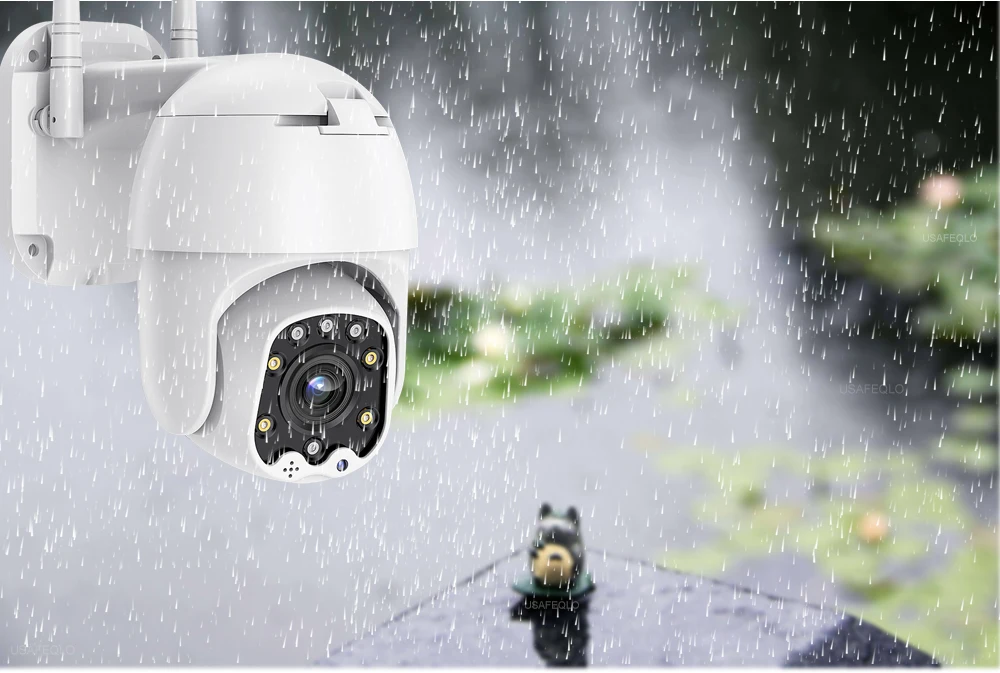

IP66 Waterproof / Dustproof
The camera case is made of high-quality ABS plastic, which is waterproof,sun-proof and dust-proof. It is suitable for any environment .

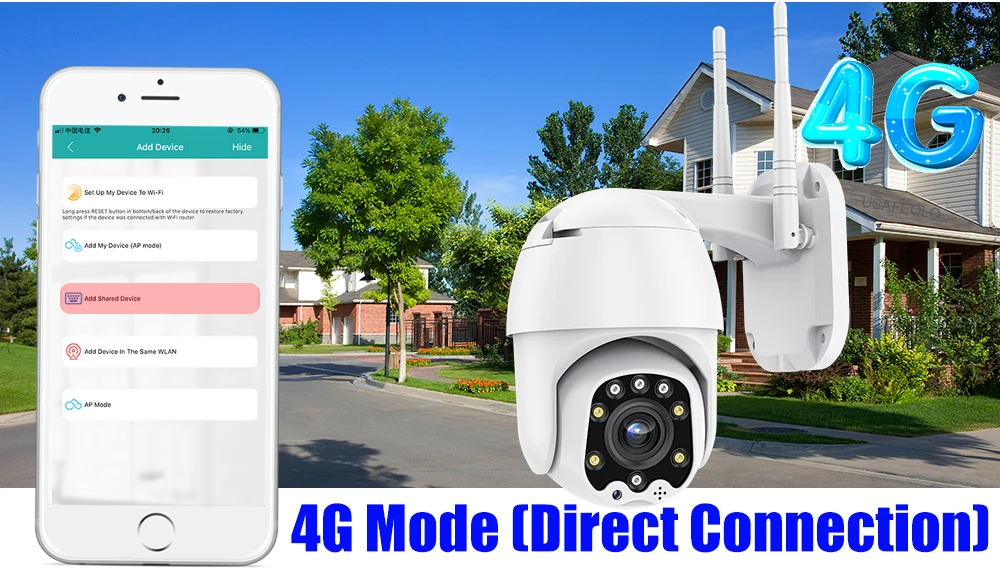

4G Mode (Direct Connection)
Step 1: Contact the TF card and SIM Card
Step 2: Contact the Power Supply
Step 3:"Add shared Device and write the Serial ID"
Ai Humanoid Detection
Smart Ai Detection function , support mixing line, area, two-way flow detection, for human form, easy setting in App .

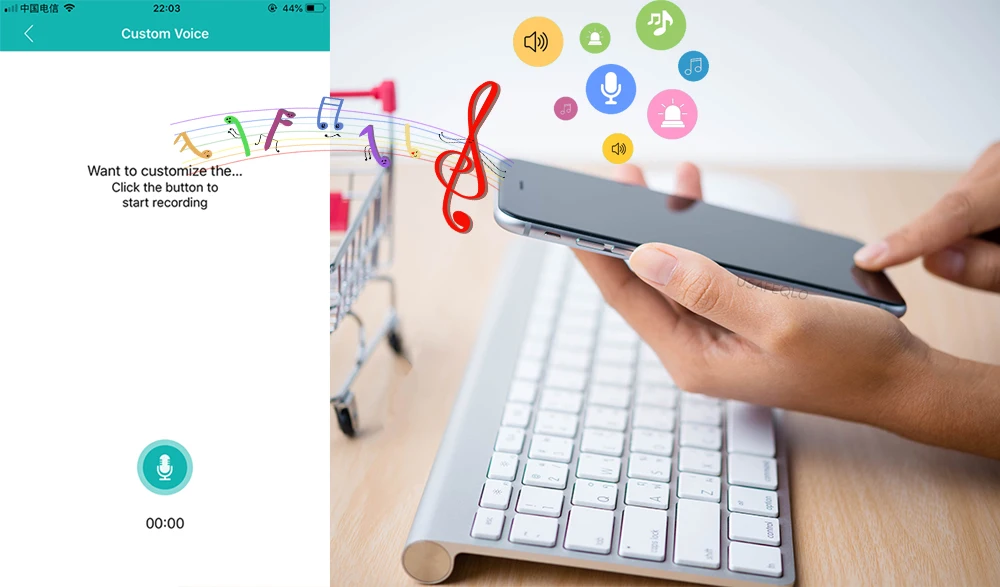

DIY Alarm Voice and Default Bell
Support default bell or DIY 3 seconds custom alarm bell with your voice . When you go out without bringing your phone and someone close to your house , the DIY alarm voice could let the men think you are looking at him Now .

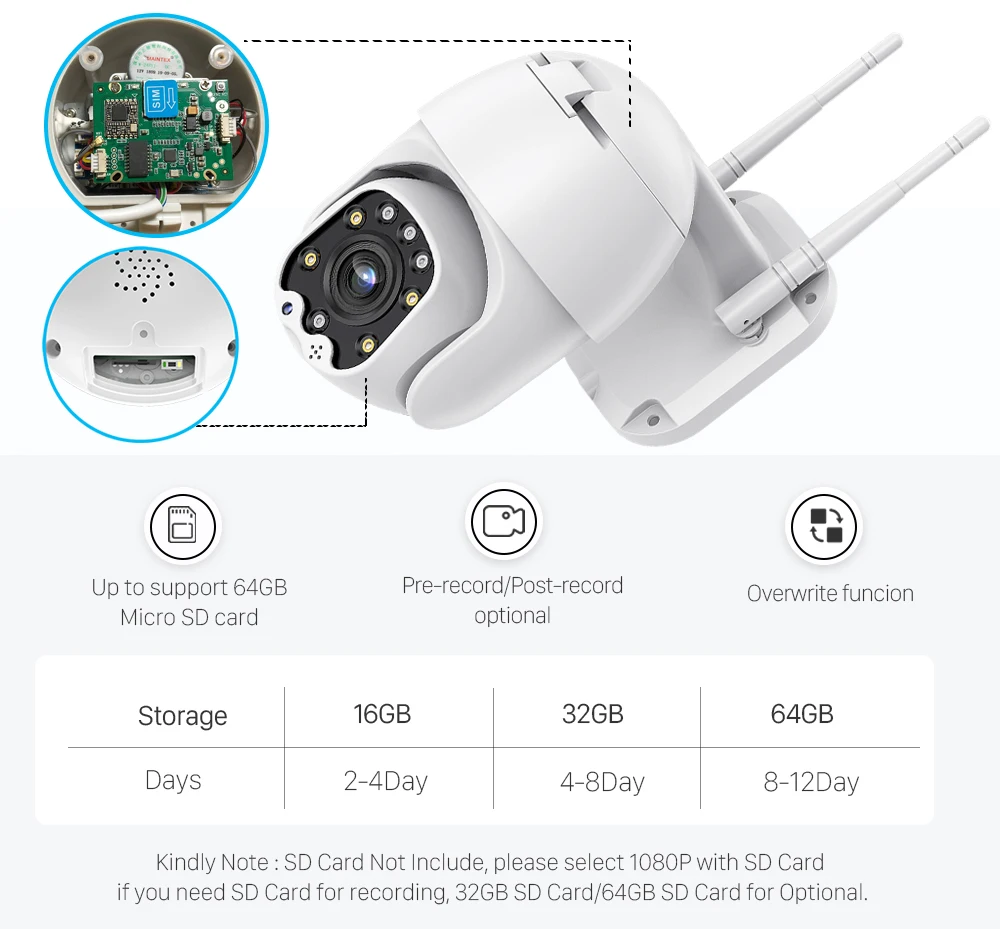

Easy install the TF card
Take off the 4 pcs screws,then put into the tf card.
*NOTE : it will be overwrite the oldest files when memory is full!
Connection Ways(wifi and wired network)
Warm tips: Before seup the camera, please press the "reset button" with 5- 7 seconds to factory reset.

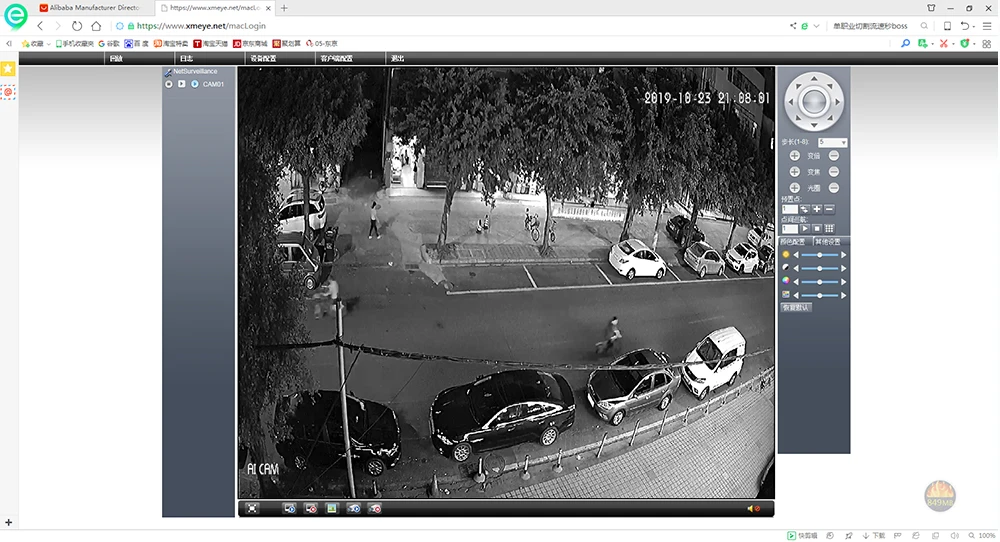

VMS&www.xmeye.net Display

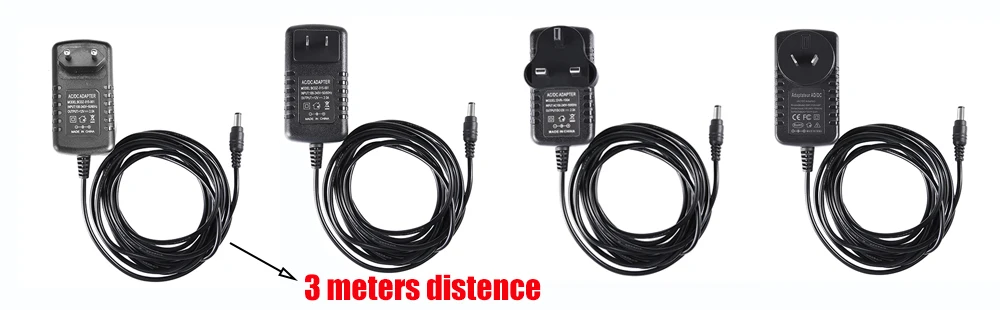

We have defult offer the 3M Power supply for optional,much easyer install the camera.
We will send the right plug adapter to you.
Features:
– HD 1080P Resolution
2.0MP High Definition image,Clear and fine images.Max Image size 1920*1080.
– Zoom Lens
2.7-13.5mm 5X Optional Zoom.
– Audio Record
Can record the sound around the camera,Most Other Camera Not Support Audio Record.Clear listening effect, Save voice evidence, True sound reproduction, Clear detail recording, Help you record important sound evidence.
– Motion Detection Alarm
The camera detects the moving person.Send a mobile phone alarm message.
– PTZ Control
Can rotate 320 degrees horizontally and rotate 90 degrees vertically.The mobile phone can control the rotation angle of the gimbal and see the direction you want to see.
– Two-Way Speech
Filter noise, clearer sound, real-time two-way speech,Easy to deal with various problems.Drive away the bad guys.
– WiFi Link
Only need to connect to the wireless WIFI network,No plug-in network cable, Signal stability.

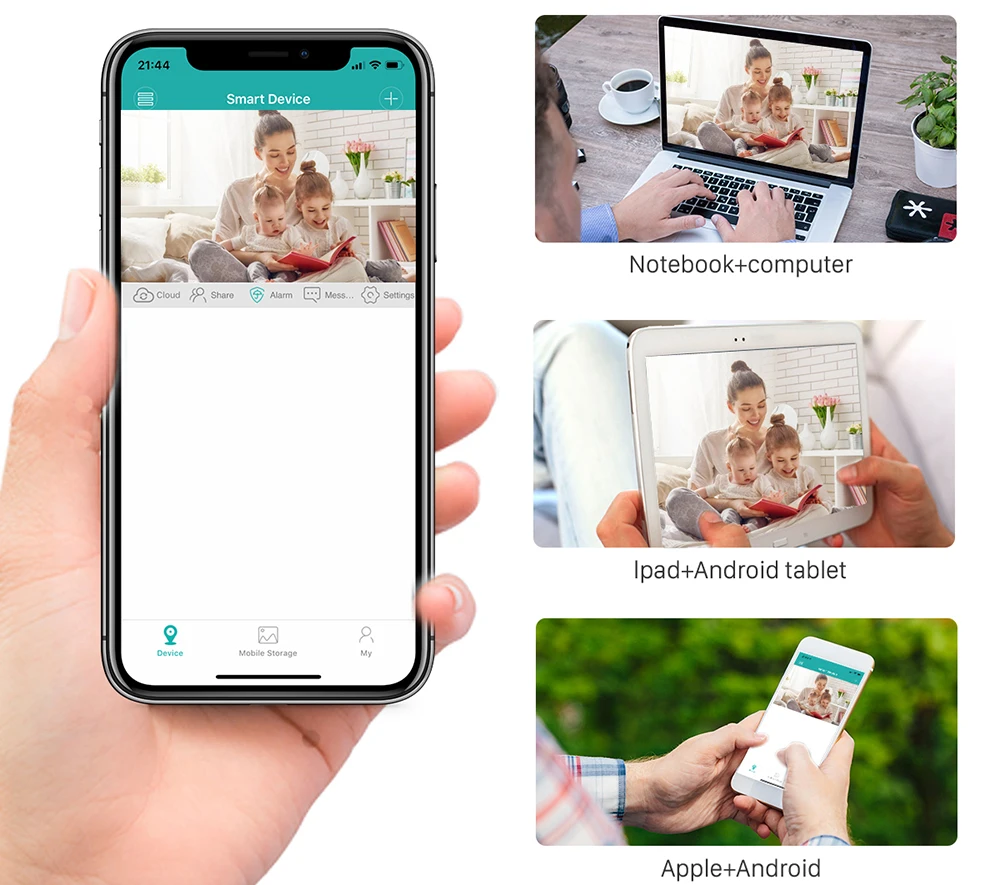

– Mobile Video Surveillance
Support mobile phone iOS, Android system,Remote monitoring of mobile phones,You can view and monitor at any time.
– IP66 Waterproof
IP66 waterproof.Professional waterproof design,Outdoor waterproof, Good sealing,No need to worry about rain.
– JPEG Snapshot
Snapshot function.Snapshot function.Upload pictures from your phone.
– Infrared Night Vision VIew
The Farthest IR Distance is up to 30M.
– Day&Night
IR cut filter with auto switch.
– TF Card Max 128GB, we recommend Our Card, Sandisk card,Kingsten card.
– ONVIF
4G Camera no need Onvif function.
– Compression
Advanced H.265X video compression,Super low rate,high definition quality of image.
– Center Platform Aanagement SoftwareICSEE Pro or ICSEE.XMEye
|
Model
|
USA-4GSJZ
|
||
|
Camera
|
Operating system
|
Embedded Linux OS
|
|
|
Processor Sensor
|
XM530+2235
|
||
|
Megapixel
|
1920*1080
|
||
|
Lens interface type
|
M12
|
||
|
Lens
|
2.7-13.5mm Optical Zoom Lens
|
||
|
View angle
|
90 degrees | ||
|
Min.illumination
|
0.01 Lux / 0 Lux(IR on)
|
||
|
Day&Night mode
|
Auto IR-CUT
|
||
|
Night vision distance
|
4pcs Array Infrared LEDs or 4pcs White Supplement LEDs. 30M Night Vision
|
||
|
Video
|
Video compression
standard
|
H.265X/H.264 Main Profile/H.264 Baseline
|
|
|
Video streaming
|
Dual streaming
|
||
|
Video resolution
|
First stream: 1080P(1920×1080), 720P(1280×720)
|
||
|
Second stream: 720P(640×480/640×352),
720P(320×240/320×176)
|
|||
|
JPEG stream :(Monitoring for mobile phones),
|
|||
|
720P(640×352), 720P(320×176)
|
|||
|
Video code rate
|
Supports constant bitrate/variable bitrate
|
||
|
Video frame rate
|
20fps(PAL 50HZ). 20fps(NTSC 60HZ)
|
||
|
Image settings
|
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
|
||
|
Image enhancement
|
Backlight compensation,Automatic white balance,
|
||
|
Digital WDR, 3D digital noise reduction
|
|||
|
Audio
|
Audio compression standard
|
G.726/G.711
|
|
|
Audio code rate
|
Rate adaptive
|
||
|
Audio Input
|
Support, Built-in Microphone
|
||
|
Audio Output
|
Support Two Way Audio Talk , Built-in Loud Speaker
|
||
|
Function
|
Motion detecting
|
Can set 4 independent detection region (1-100 sensitivity can be set)
|
|
|
Alarm linkage
|
Alarm send pictures to the specified mailbox,
|
||
|
alarm upload pictures and videos to the FTP server,
|
|||
|
alarm write pictures and videos to Micro SD card,
alarm message push
|
|||
|
Privacy mask
|
Maximum support 4 users to simultaneously browse
|
||
|
OSD
|
Support camera name, date and time information superimposed
|
||
|
User management
|
Supports user and rights management
|
||
|
Simultaneous viewers
|
maximum support 12 users to simultaneously browse
|
||
|
(each stream supports 4 users)
|
|||
|
Network protocol
|
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP
|
||
|
DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
iF the camera support contact by xmeye app, these functions defult will support.
We will not accept any dispute because of this function not working.
|
|||
|
Connection protocol
|
N/A
|
||
|
4G
|
4G standard
|
FDD-LTE
|
|
|
Frequency range
|
Africa,Europe,Asia Standrad: B1,B3,B7,B8,B20,B38,B40,B41, WCDMA B1,WCDMA B8.
America, South America, North America Standrad: B1,B2,B4,B12,B13,WCDMA B2,WCDMA B4,WCDMA B5.
Japan Standrad: B1,B3,B8,B18,B19,B26, TDD B41,WCDMA B1,WCDMA B6,WCDMA B19.
Ukraine Standrad: B3,B7.
|
||
|
Transmission rate
|
Upload max:50Mbps, download max: 150Mbps
|
||
|
Security
|
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
||
|
PTZ
|
Rotation angle
|
Horizon:0° to 270°. Vertical: 0° to 90°
|
|
|
Horizontal speed
|
1° to 40°/S
|
||
|
Vertical speed
|
1° to 20°/S
|
||
|
Preset
|
N/A
|
||
|
Interface
|
Power interface
|
1*5.5mm power interface
|
|
|
Ethernet
|
N/A
|
||
|
TF card Slot
|
1*TF card slot. up to 64G(Don't included TF Card)
|
||
|
Reset button
|
Support
|
||
|
General
Specification
|
Power supply
|
DC 12V 2A (optional)
|
|
|
power
|
Day: 3W; Night: 12W
|
||
|
Operating temperature
|
-20 to +60 degree
|
||
|
Operating humidity
|
10% to 95%
|
||
|
Material
|
ABS Plastic Housing ,Outdoor Use,Waterproof IP66
|
||
|
Installation
|
Rack mounting
|
||
|

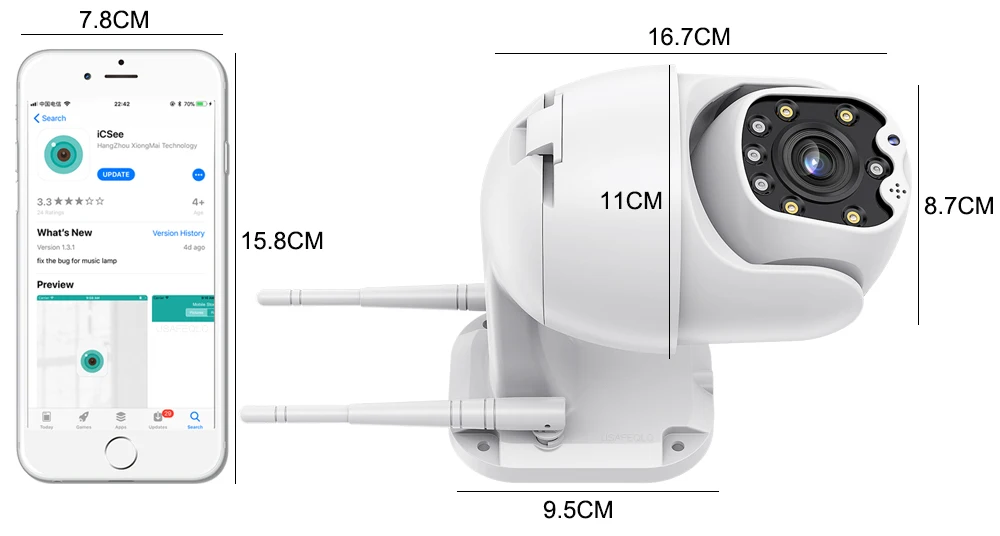

Size(W×D×H)(mm)
|
160*110*100mm
|
||
|
Weight(kg)
|
0.8kg
|
||
|
Package Size(W×D×H)(mm)
|
250*250*100mm
|
||
|
Package Weight(kg)
|
0.85kg
|
||
Package information:
This item is free shipping to most of the countries, But you must to pay the tax is your custom require,for aliexpress rule tax is not include in the item price,buy have duty pay tax,so you must confirm weather your coustom easy take the tax problem.
1x IP camera
3x Screws
1x User manual
1x Screw tool
1x 12V2A with 3M cable
The SKU"1080P NO POWER" means not include Power supply
"1080P 12V2A Power" means include camera and power supply
"1080P 32GB 2A" means include the camera,32GB card and power supply
"1080P 64GB 2A" means include the camera,64GB card and power supply
"1080P 128GB 2A" means include the camera,128GB card and power supply
