- IR Distance(m): IR distance up to 40-70 meters
- Power Supply: Normal
- Viewing Angle : 75°
- Supported Mobile Systems: ios
- Supported Mobile Systems: Android
- Video Compression Format: H.264
- Technology: INFRARED
- Alarm Action: FTP Photo
- Alarm Action: Email Photo
- Alarm Action: Local Alarm
- Supported Operating Systems: Windows 7
- Supported Operating Systems: windows 8
- Supported Operating Systems: Mac OS
- Style: Bullet Camera
- Power Consumption(W): <10W
- Power Supply(V): DC12V
- Installation: Ceiling
- Lens (mm): 6mm
- Lens (mm): 3.6mm
- High Definition: 2.0 Megapixels
- Dimensions (L x W x D)(mm): No package: 178*67*66 , Package: 184*103*90
- Sensor: CMOS
- is_customized: Yes
- Wall Bracket: Side
- Connectivity: WIFI
- Model Number: YZ-H2xxW5A-FM
- Minimum Illumination(Lux): Color : 1.0/F1.2 ; Monochrome : 0.01/F1.2 ; IR : 0
- Network Interface: RJ-45 10/100Mb Ethernet Slot
- Type: IP Camera
- Special Features: Waterproof / Weatherproof
- Brand Name: YUZUN
- Color: White
- Audio Output: Other
- Support P2P remote monitoring: Support wifi connection
- High resolution of 720P,960P,1080P: Automatic white balance / manual
- Support micro-SD card, max 64GB: IP66 waterproof
- Aluminium alloy case: Standard ONVIF2.0 protocol , GB28181protocol ;
- Supported Mobile Systems: iPhone OS
Wireless AP mode IP66 bullet P2P camera
High resolution up to 1080P
Support p2p remote monitoring

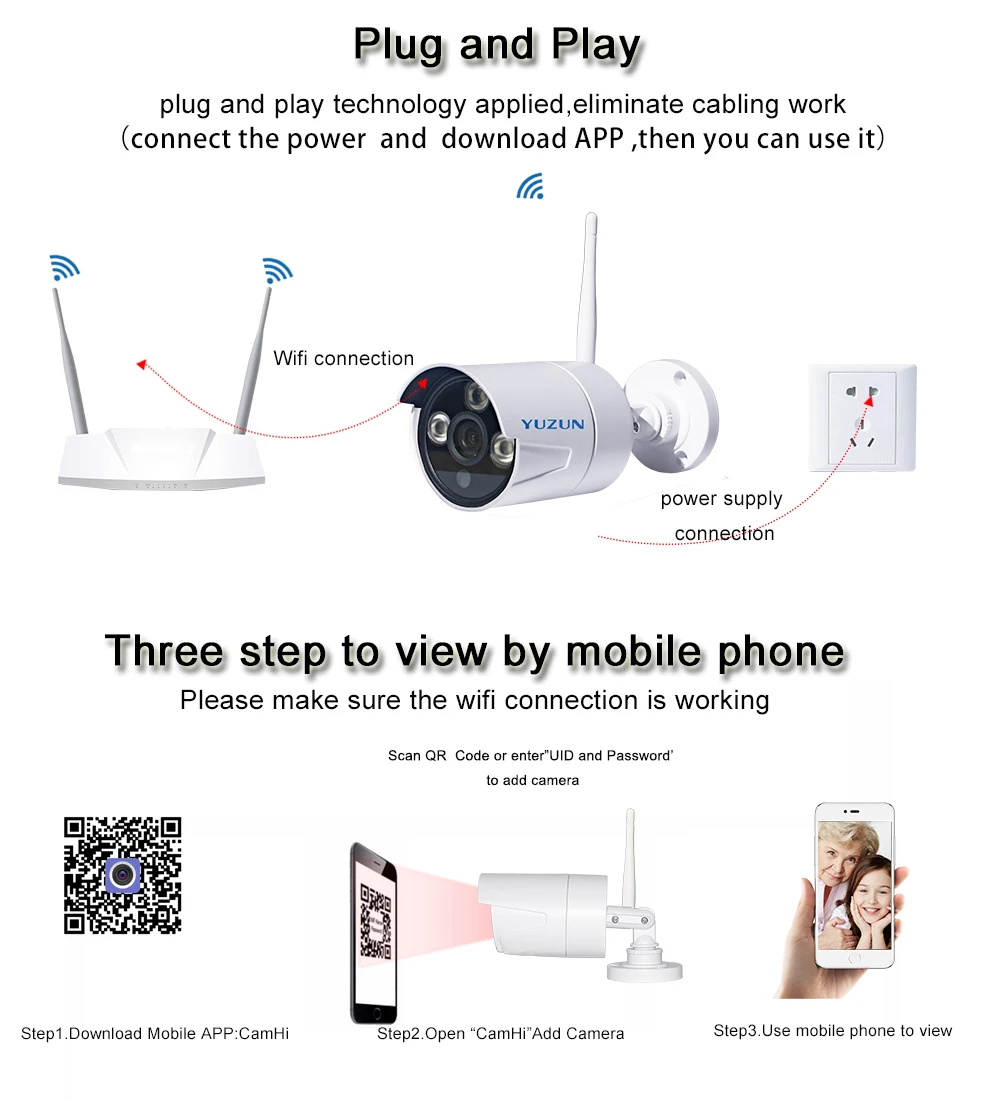

Built-in AP wifi mode, mobile phone can connect in close distance.
Local storage, max 64GB SD card

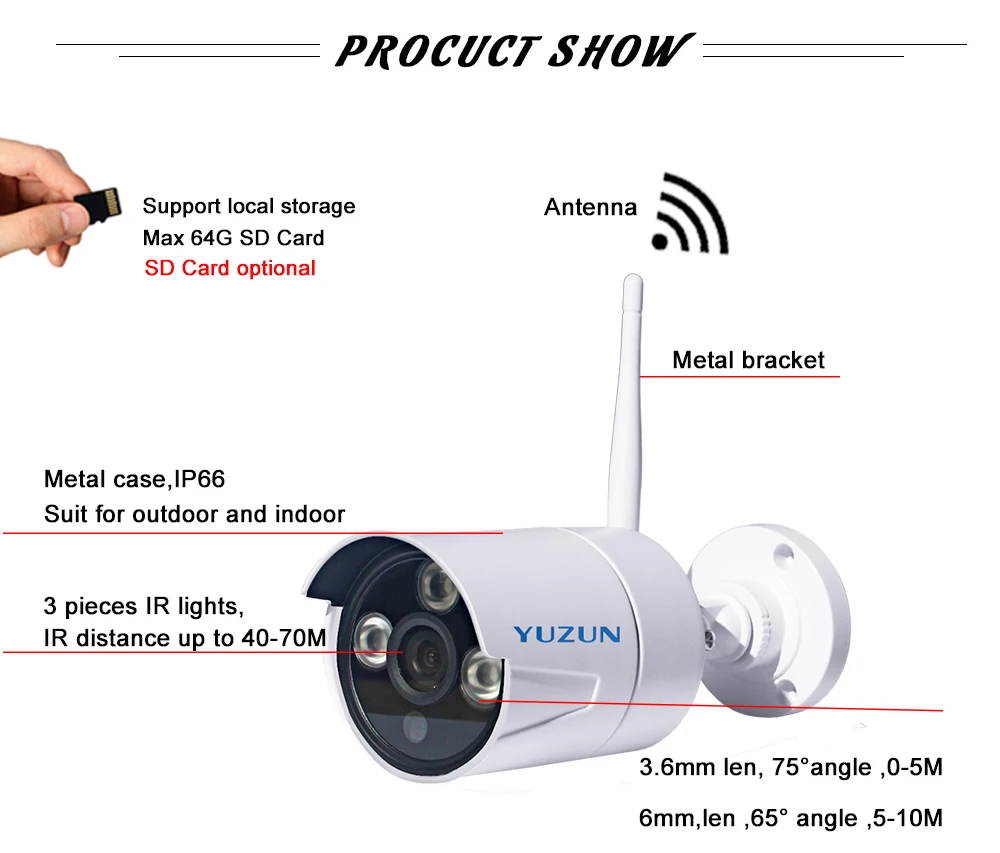

Built in 2 pieces electromagnetic drive type IR-Cut, IR distance up to 40-70 meters
Lens :6mm MTV lens(3.6mm optional)
IP66 , anti immersion, anti surge, heat dissipation
Aluminium alloy case
Suit for building, factory, field, uptown,and electric power monitoring
| Model | YZ-H210W5A-FM | YZ-H213W5A-FM | YZ-H220W5A-FM |
| Video and audio | |||
| Video compression | H.264 High Profile @Level 4.0 | ||
| Main processor | 32bit dual core high performance DSP | ||
| Image sensor | 1/4” CMOS | 1/3” CMOS | 1/2.8” CMOS |
| Effective pixels | 1.0 mega pixels | 1.3 mega pixels | 2.0 mega pixels |
| Maximum resolution | First stream：1280*720 | First stream：1280*960 | First stream：1920*1080 |
| Second stream：640*352 | Second stream：640*480 | Second stream：640*352 | |
| Third stream：/ | Third stream：320*240 | Third stream：320*176 | |
| Video frame rate | First stream：1280*960@20fps | First stream：1280*960@25fps | First stream：1920*1080@25fps |
| Second stream：640*352@20fps | Second stream：640*480@25fps | Second stream：640*352@25fps | |
| Third stream：/ | Third stream：320*240@25fps | Third stream：320*176@25fps | |
| Video bit rate | 32kbps-6Mbps adjustable | 32kbps-8Mbps adjustable | |
| Video stream | Multiple H.264,M-JPEG video stream, at maximum resolution to 25 FPS while the sync output of multi-channel video stream | ||
| Camera module | |||
| Lens | Standard 3MP 6mm (3.6mm optional ) | ||
| Min. illumination （LUX） | Color : 1.0/F1.2 ; Monochrome : 0.01/F1.2 ; IR : 0 | ||
| White balance | Automatic white balance / manual | ||
| Auto control | AWB/WGC/AE/AIC, automatic day/night double filter switch | ||
| Support | |||
| Low illumination enhanced | Support | ||
| Network | |||
| Network protocols | IPv4 , TCP/IP , UDP , HTTP , RTP/RTCP/RTSP , FTP , UPnP , DDNS , NTP , IGMP , ICMP ; | ||
| Access protocol | Standard ONVIF2.0 protocol , GB28181protocol ; | ||
| Safety | Password protection , multi-user access , access authorized | ||
| System integration | |||
| APP interface | Support integrated API，SDK | ||
| IR distance | 3 pieces IR 850nm light source, IR distance up to 40-70 meters | ||
| Network interface | 1 RJ45 10Base-T/100Base-TX | ||
| Connection mode | Support wifi hot spot AP mode, wifi connect and wired connect | ||
| Local storage | Support micro-SD card, max 64GB | ||
| Wi-Fi | Support wifi connection | ||
| P2P | Support P2P remote monitoring, no cabling, plug and play | ||
| Other | |||
| Power supply | DC12V | ||
| Power consumption | ＜10W | ||
| Working environment | Working temperature -20℃～+55℃；working humidity ≤ 95% | ||
| Housing | Aluminium alloy case | ||
| IP rating | IP66 | ||

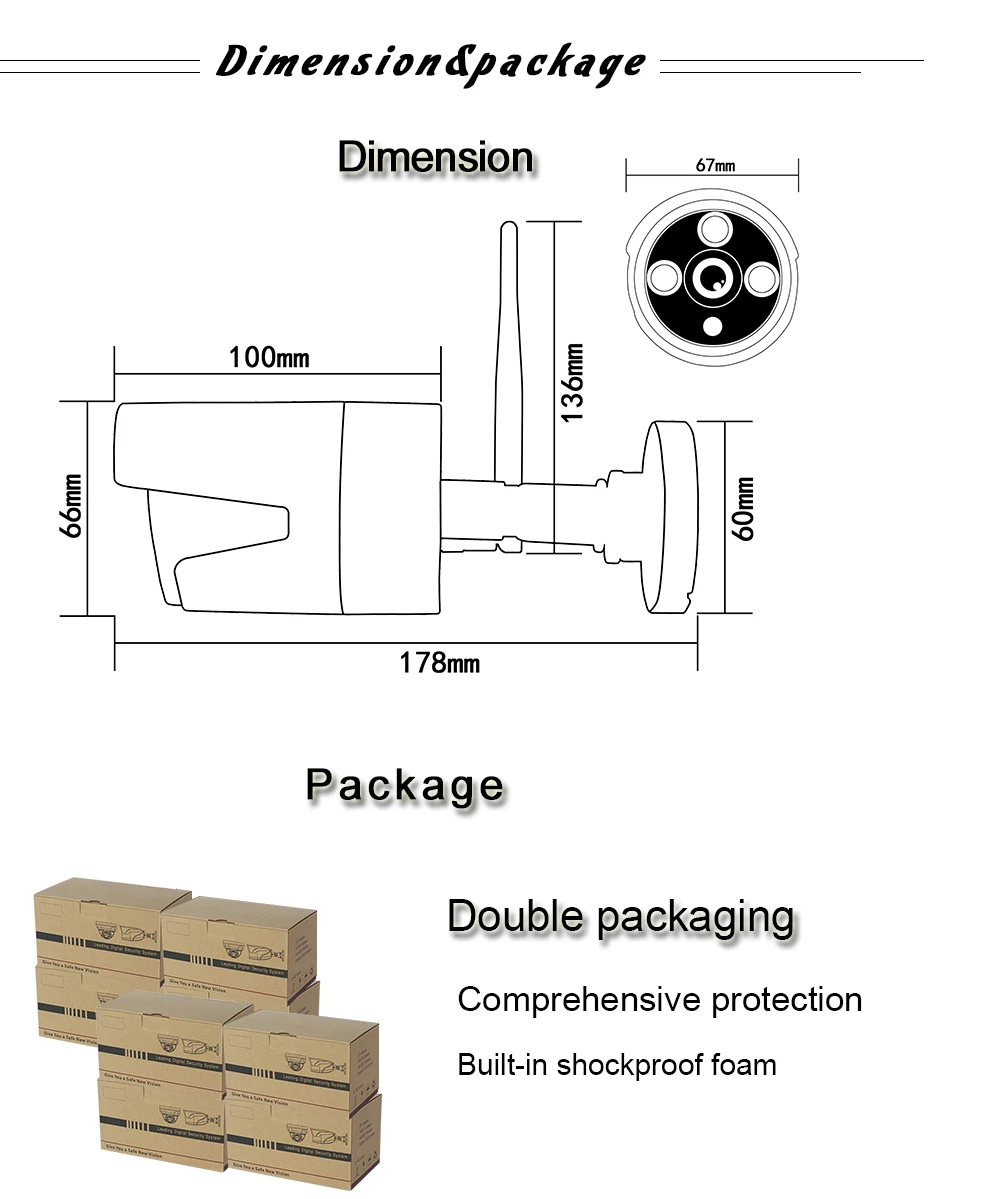

| Dimension (mm) | No package: 178*67*66 , Package: 184*103*90 | ||
| Weight (kg) | No package : 0.36, Package : 0.46kg | ||
| Installation | Wall mounted, hand installation | ||
