- High Definition: 2.0 Megapixels
- Brand Name: YUZUN
- Alarm Action: FTP Photo
- Alarm Action: Local Alarm
- Alarm Action: Email Photo
- Sensor: CMOS
- Model Number: YZ-J420WT
- Supported Operating Systems: Windows 7
- Supported Operating Systems: Mac OS
- Supported Operating Systems: windows 8
- Video Compression Format: MJPEG
- Video Compression Format: H.264
- Power Consumption(W): <10W
- is_customized: Yes
- Connectivity: WIFI
- Supported Mobile Systems: Android
- Technology: Pan / Tilt / Zoom
- Viewing Angle : 180°
- Lens (mm): 1.44mm
- Color: White
- Dimensions (L x W x D)(mm): No package: 118*76 , Package: 240*140*130
- Power Supply: Normal
- Style: Mini Camera
- Wall Bracket: Ceiling
- Minimum Illumination(Lux): Color : 1.0/F1.2 ; Monochrome : 0.01/F1.2 ; IR : 0
- Power Supply(V): DC12V
- Type: IP Camera
- Installation: Ceiling
- Audio Output: Other
- Storage: Support SD card
- Special Features: IP65
- Electronic PTZ control: H.264 Main Profile @Level 4.1
- plug and play: Support voice intercom function Mini size
- Support P2P remote monitor: Remote alarm
- Supported Mobile Systems: iPhone OS
-

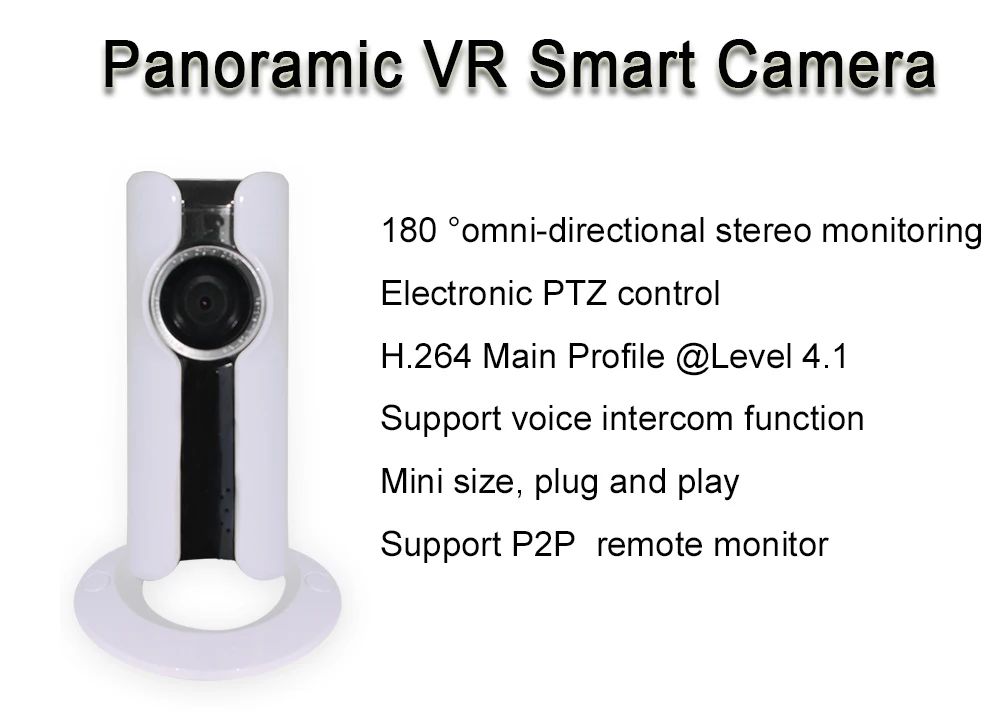

panoramic network cameras for video surveillance
Main Features
High resolution of 1080P
Electronic PTZ
Support P2P remote monitoring
visual angle 180 degree
Voice intercom between APP and camera
Motion detection and audio alarm
Local storage, max support 64GB SD card
IP65, anti surge, heat dissipation

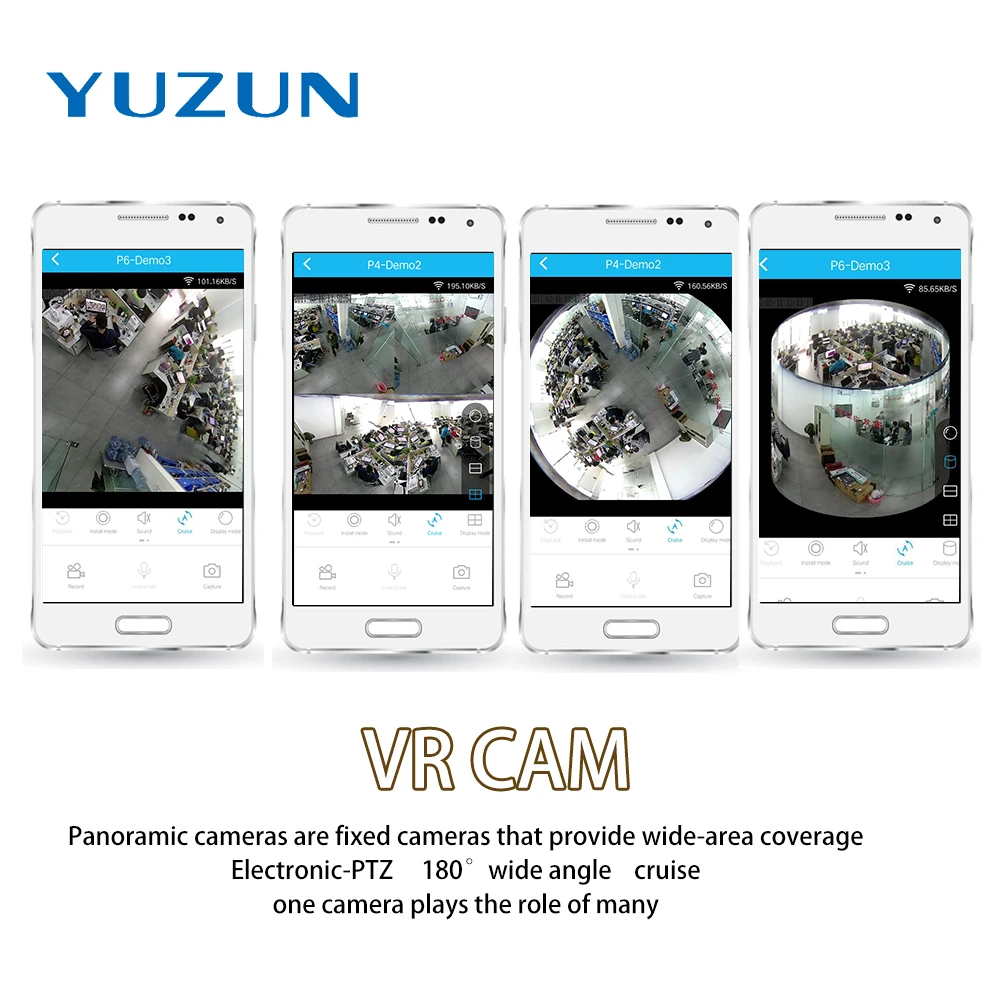

Multiple display modes
Specifications
| Model | YZ-J420WT | |
| Video and audio | ||
| Video compression | H.264 High Profile @Level 4.1/Motion JPEG | |
| Main processor | High performance DSP | |
| Image sensor | 1/2.8” CMOS | |
| Effective pixels | 2.0 mega pixels | |
| Maximum resolution | First stream：1920*1080 | |
| Second stream：640*352 | ||
| Video frame rate | First stream:1920*1080@25fps | |
| Second stream: | ||
| 640*352@25fps | ||
| Video bit rate | 32kbps-8Mbps adjustable | |
| Video stream | Multiple H.264,M-JPEG video stream, at maximum resolution to 25 FPS while the sync output of multi-channel video stream | |
| Audio | Support, audio format : G711/726 | |
| Camera module | ||
| Lens | Standard 1.44mm | |
| Min. illumination （LUX） | Color : 1.0/F1.2 ; Monochrome : 0.01/F1.2 ; IR : 0 | |
| Feature | Visual angle : 180° wide visual angle; | |

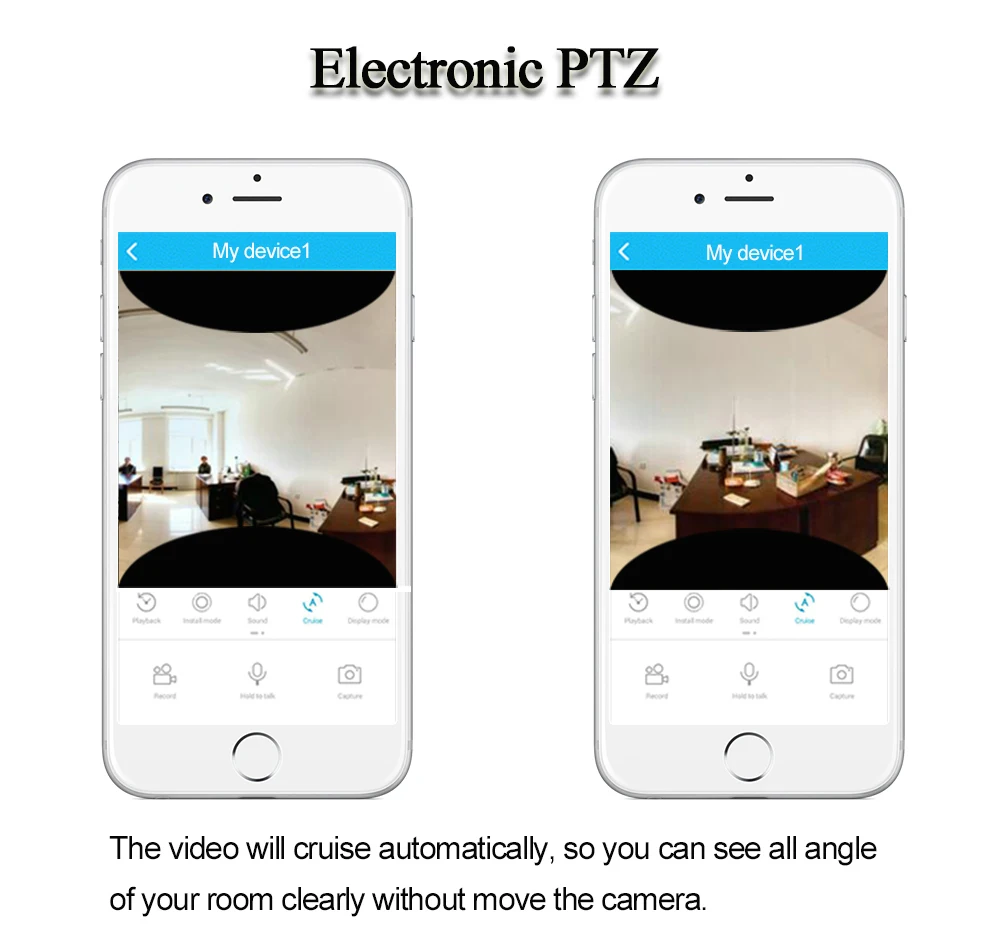

| Electronic PTZ : horizontal 0-170°, vertical -60°-60° | ||
| Network | ||
| Network protocols | IPv4 , TCP/IP , UDP , HTTP , RTP/RTCP/RTSP , FTP , UPnP , DDNS , NTP , IGMP , ICMP ; | |
| Access protocol | Standard ONVIF2.0 protocol , GB28181protocol ; | |
| Safety | Password protection , multi-user access , access authorized | |
| System integration | ||
| APP interface | Support integrated API，SDK | |
| Connection mode | Support wireless AP mode, wifi connect and wired connect | |

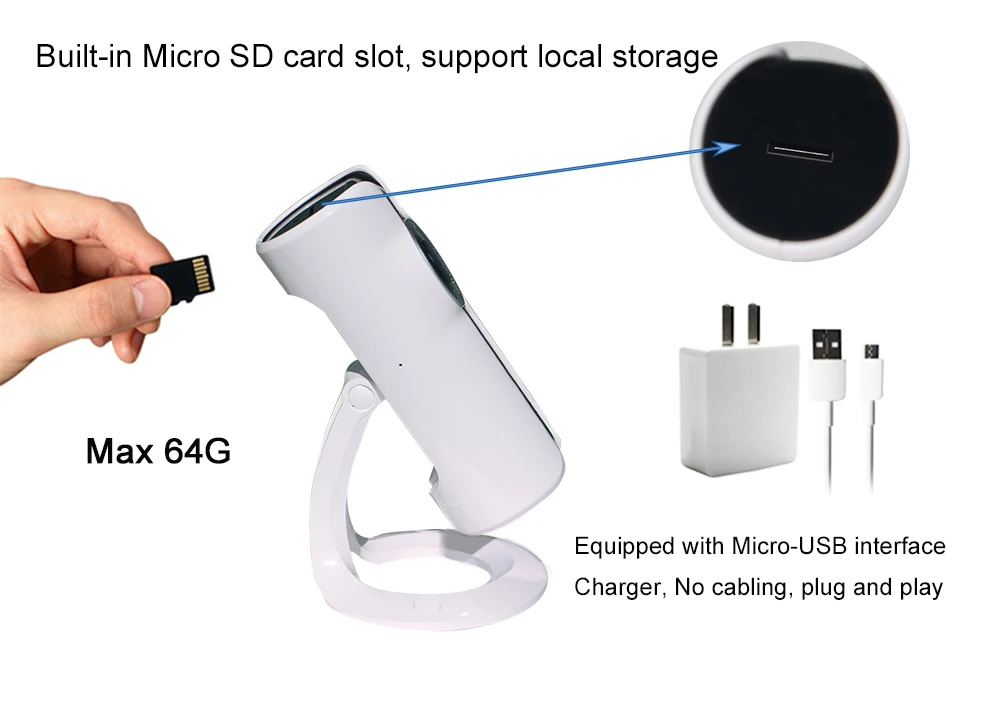

| Local storage | Support micro-SD card, max 64GB | |
| Wi-Fi | Support wifi connection | |
| P2P | Support P2P remote monitoring, no cabling, plug and play | |
| Voice intercom | Support voice intercom between the APP and the camera | |
| Other | ||
| Power supply | DC12V | |
| Power consumption | ＜10W | |
| Working environment | Working temperature -20℃～+55℃；working humidity ≤ 95% | |
| Housing | Engineering plastic materials | |
| IP rating | IP65 | |

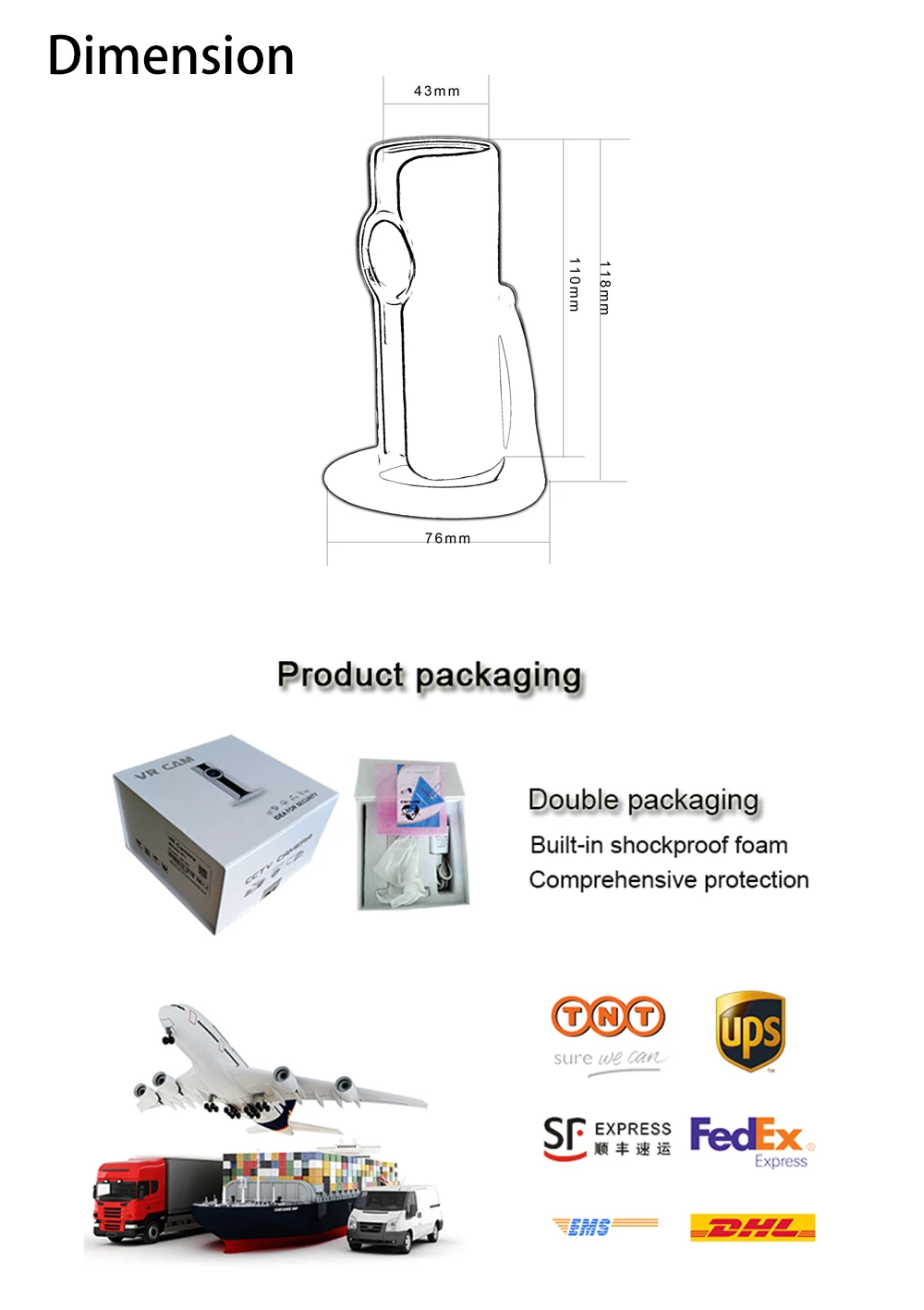

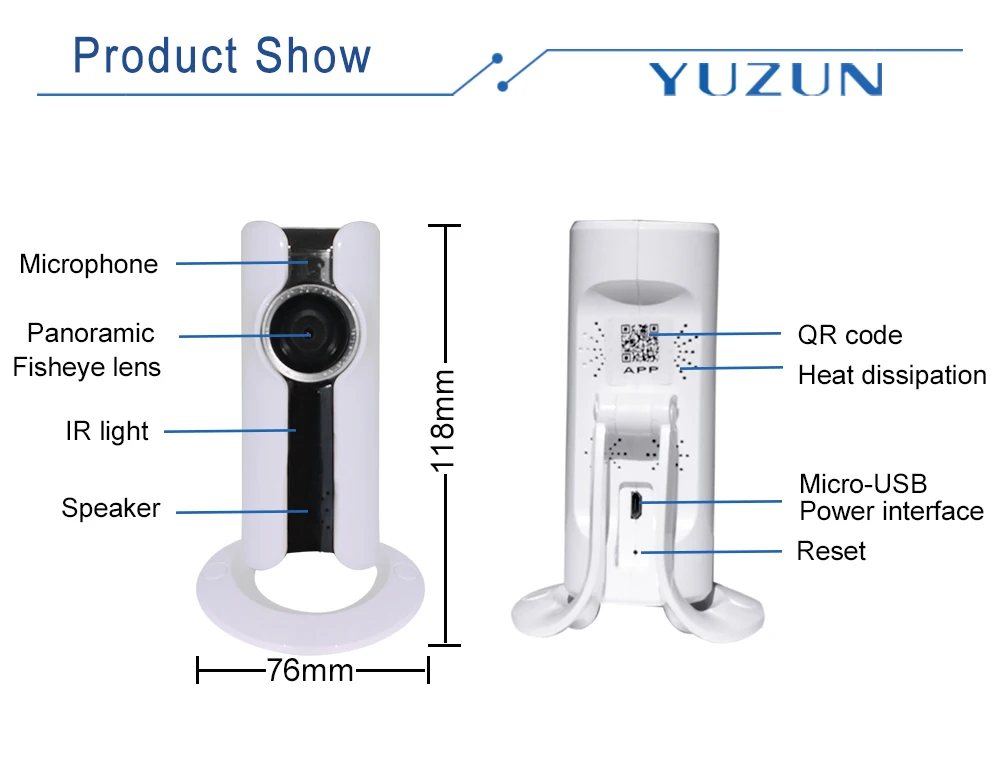

| Dimension (mm) | No package: 118*76 , Package: 240*140*130 | |
| Weight (kg) | No package : 0.11 , Package : 0.39 | |
| Installation | Wall mounted, ceiling installation | |
